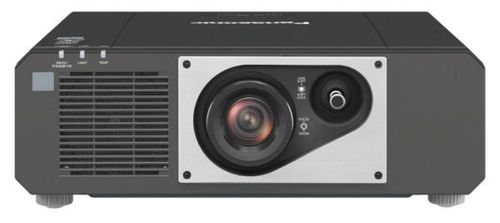

Panasonic PT-FRZ55BU7 Laser Projector

Description

Panasonic PT-FRZ55BU7 Laser Projector

Color-rich DLP™ Projectors Offer Dynamic Pictures with Flexible Integration into Classroom, Office, or Exhibition

Optimized for Color and Contrast

Quartet Color Harmonizer is an original color-wheel technology with optimized optical design. It modulates light-output to color requirements, achieving pure white for beautifully accurate color reproduction without sacrificing brightness. Rich Color Enhancer adjusts color-wheel timing for deeper color saturation. With uniformity assured by DLP™ imaging and Dynamic Contrast 2, single- or multi-screen projections immerse you completely.

Flexible Install, Stress-free Setup

PT-FRZ60/FRZ50 features a 2.0x zoom lens for flexible projector location, making installation easy. PT-FRZ55 has a powered 0.8:1 short-throw lens for shadow-free rear-projection in control rooms or at exhibitions. All models include V/H Lens-Shift, V/H Keystone Correction, and Curved-Screen Correction, and share the same lenses and mounts as their previous corresponding models for stress-free renewal.

Smooth System Integration

Compatibility with 4K/60p input signals*1 enables easy integration into a 4K display network, while two CEC-ready HDMI® inputs and USB-DC outlet connect streaming devices*2 or PressIT^*3, Panasonic’s new one-touch Wireless Presentation System. Separate LAN terminal for IP control frees DIGITAL LINK for video.

Silent, Reliable Projection

Multi-Laser Drive Engine^*4 modules have Failover Circuitry*5 to prevent dimming in the event of diode failure. Airtight DMD block and filterless cooling enable 20,000 hours^*6 maintenance-free projection with quiet 27 dB^*7 operation. Reliability is reinforced with optional Early Warning software^*8.

Key Features

Daylight View Basic
Detail Clarity Processor 3
Quick Start and Quick Off
Free 360 ° body rotation
Auto Image Rotation
Edge Blending and Color Matching
Multi Monitoring & Control Software with optional Early Warning functions*8
ECO Management System

^{*1 Uncompressed 4K/60p signal input supported via DIGITAL LINK and HDMI. 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.
*2 Compatibility with third-party devices is not guaranteed. Devices sold separately.
*3 Optional WP Series Wireless Presentation System on sale from September 2020 (availability may vary by country or region).
*4 Rate of brightness decrease varies depending on projector model.
*5 Specifications vary depending on model.
*6 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast 2, temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.
*7 For the PT-FRZ50/FRZ55 in Quiet Mode (32 dB in Normal Mode). Operating noise for the PT-FRZ60 is 30 dB in Quiet Mode or 35 dB in Normal Mode.
*8 Early Warning functions (ET-SWA100 Series) are included with free Multi Monitoring & Control Software Ver. 3.0 or later and require a license key and activation after a 90-day trial period expires.}

Specifications

Detailed Specifications
Resolution:	WUXGA (1920 x 1200)
Display Device:	0.67" 1-Chip DLP
Brightness:	5,000 ANSI Lumens; 5,200 Center Lumens
Contrast Ratio:	20000:1
Video Signals:	N/A
Aspect Ratio:	16:10
Number of Colors:	Full Color
Lamp:	Laser Light Engine
Typical Lamp Life:	20,000 Hours
Lens:	Fixed zoom; powered focus, F 1.75, f 11.9mm
Throw Ratio:	0.8:1
Image Size:	40" - 300"
Throw Distance:	N/A
Keystone Correction:	Vertical ±40°; Horizontal ±20°
Projection Methods:	Front/Rear; Ceiling Mount/Tabletop
Inputs:	HDMI x 2 VGA x 2 Composite Video (RCA Yellow) x 1 3.5mm Stereo Audio x 2 RCA Audio (L/R) x 1 USB Type A x 1 RJ45 x 1 RS232 x 1
Outputs:	VGA x 1 3.5mm Mini Jack Audio x 1
Speaker:	TBA
Audible Noise:	27 dB (Quiet) / 32 dB (Normal)
Weight:	36.1 lbs.
Dimensions:	19.6" x 6.61" x 19.4"
Accessories:	TBA
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	3 year parts and labor
Product Data Sheet:	Product Data Sheet
