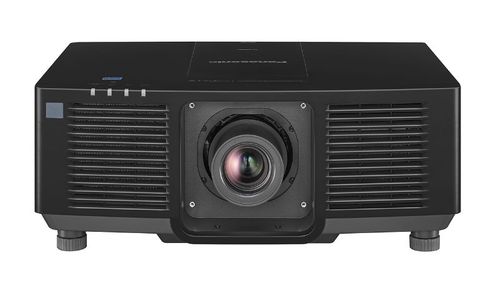

Panasonic PT-MZ680BU Laser Projector
Description
Well-Balanced Color and Brightness, Seamlessly Integrated into Environment and Infrastructure
Well-Balanced Picture QualityRefined optical engine balances brightness and color for vivid images without turning the lights off. Detail Clarity Processor 4, Dynamic Contrast, and Daylight View Basic optimize display to suit content and environment.
Flexible Design Fits Any SpaceUnobtrusive cabinet, 26 dB*2 operation, 4K-signal-ready*3 DIGITAL LINK and CEC-compatible HDMI® terminals (x3), Geo Pro*4, Edge-Blending, and support for optional ET-ELU20 Ultra-Short-Throw Zoom Len*5 enable flexible projection.
Efficient Eco-Friendly ReliabilityEnergy consumption is reduced by about 20 %*6 to meet your organization’s CSR policy commitments. Multi-Laser Drive Engine and reusable*7 Eco Filter extend maintenance to 20,000 hours*8 with Early Warning software*9 reducing labor and waste.
*1 Measurement, measuring conditions, and method of notation are all compliant with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
*2 PT-MZ780/PT-MZ680 in Quiet Mode, 32 dB in Normal Mode/Eco Mode. Operating noise for PT-MZ880 is 27 dB (Quiet Mode), 34 dB (Normal Mode/Eco Mode).
*3 Supports signals up to 4K/60p (YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK). Signal resolutions differing from projector resolution are converted to the projector’s resolution (1920 x 1200 dots).
*4 Some functions available in Geo Pro software are not supported by the PT-MZ880 Series. Download Geometry Manager Pro free from the PASS website.
*5 All models ship with standard 1.61–2.76:1 powered zoom lens. Optional ultra-short-throw zoom lens scheduled for release in September 2021.
*6 PT-MZ880 excluded. Approximate value according to Panasonic testing in comparison to equivalent models in PT-MZ770 Series.
*7 Filter replacement recommended after filter has been washed and reused twice, or if filter is not sufficiently clean after washing.
*8 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.
*9 Early Warning software (free 90-day trial) is bundled with free Multi Monitoring & Control Software. Purchase an optional license to continue use after the trial expires.
Specifications
| Detailed Specifications | |
| Resolution: | WUXGA (1920 x 1200) |
| Display Device: | 0.76" 3LCD |
| Brightness: | 6000 Lumens |
| Contrast Ratio: | 3000000:1 |
| Video Signals: | NTSC, PAL, SECAM; Computer signals up to 4K (3840 x 2160) |
| Aspect Ratio: | 16:10 |
| Number of Colors: | Full Color |
| Lamp: | SOLID SHINE Laser Light Engine |
| Typical Lamp Life: | 20,000 Hours (NORMAL/QUIET)/24,000 Hours (ECO) |
| Lens: | Powered zoom, powered focus F 1.7-2.3, f 26.8-45.5mm |
| Throw Ratio: | 1.61-2.76:1 |
| Image Size: | 40"-400" |
| Throw Distance: | N/A |
| Keystone Correction: | Vertical ±25°; Horizontal ±30° |
| Projection Methods: | Front/Rear; Ceiling Mount/Tabletop |
| Inputs: | HDMI x 3 VGA x 1 3.5mm Stereo Audio x 1 USB Type A x 1 RJ45 x 2 Wired Remote In x 2 Multi Sync in x 1 Multi Sync Out x 1 |
| Outputs: | VGA x 1 3.5mm Mini Jack Audio x 1 |
| Speaker: | No Speaker |
| Audible Noise: | 34 dB (NORMAL/ECO), 27 dB (QUIET) |
| Weight: | 41 lbs. |
| Dimensions: | 22.1" x 7.5" x 17.2" |
| Accessories: | N/A |
| Remote Control: | Remote Control Included with Batteries |
| Mfg Warranty: | 3 year projector warranty |
| Product Data Sheet: |  Product Data Sheet |
