Description

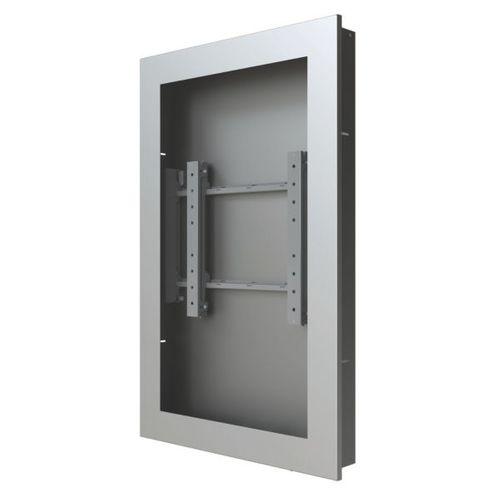

In-Wall Kiosk Enclosure for 46" Displays
When just a slim wall kiosk won't do, choose a Peerless-AV in-wall kiosk. With a profile less than 1" thin this in-wall kiosk creates a minimalistic look to a large format digital wall signage. Complete with extending arms for ease of installation and powerful fan to pull in fresh air for thermal management, this solution can be integrated into new construction or retrofit walls alike.
Key Features- Eight way tool-less adjustment to quickly position display in kiosk window for flush alignment
- Accommodates displays 3.10" (78mm) thick while still fitting within standard wood stud walls
- VESA® 200 x 200 up to 400 x 600mm compatible
- Thermostat controlled circulation fans ensure proper airflow into the kiosk
- Removable front cover and pullout mount offers easy access to the display and other internal components for easy maintenance and enhanced security
- Low-profile design extends 1" (25mm) away from the wall which meets the Americans with Disabilities Act (ADA) certification
- Supports wide range of aesthetic options including glass/acrylic, multiple colors, vinyl wraps, etc. to best match environment or promote brand strategy
- Pre-assembled to simplify installation of the entire solution
- Custom sizes available for smaller and larger displays
Specifications
Name | KIP740(S) | KIP746(S) | KIP748(S) | KIP742(S) | KIP747(S) | KIP755(S) |
Screen Size | 40" to 40" | 46" to 46" | 48" to 48" | 42" to 42" | 47" to 47" | 55" to 55" |
VESA Pattern | 200 X 200; 600 X 400 | 200 X 200; 600 X 400 | 200 X 200; 600 X 400 | 200 X 200; 600 X 400 | 200 X 200; 600 X 400 | 200 X 200; 600 X 400 |
Weight Capacity | 75lb (34kg) | 75lb (34kg) | 75lb (34kg) | 75lb (34kg) | 75lb (34kg) | 75lb (34kg) |
Colors Available | Gloss Black or Silver | Gloss Black or Silver | Gloss Black or Silver | Gloss Black or Silver | Gloss Black or Silver | Gloss Black or Silver |
Finish | Powder Coat | Powder Coat | Powder Coat | Powder Coat | Powder Coat | Powder Coat |
Security Features | Hex Pin Screw | Hex Pin Screw | Hex Pin Screw | Hex Pin Screw | Hex Pin Screw | Hex Pin Screw |
Product Dimensions | 28.91x45.41x5.15" (734x1153x131mm) | 31.85x50.90x5.15" (809x1280x131mm) | 31.85x50.90x5.15" (809x1280x131mm) | 28.91x45.41x5.15" (734x1153x131mm) | 31.85x50.90x5.15" (809x1280x131mm) | 35.35x57.90x5.15" (898x1471x131mm) |
Shipping Weight | 78.79lb (41kg) | 86.02lb (45kg) | 84.65lb (45kg) | 77.6lb (41kg) | 85.34lb (45kg) | 96.98lb (50kg) |
Ship Dimensions | 36 x 8 x 50" (914.4 x 203.2 x 1,270.0mm) | 39 x 8 x 54" (990.6 x 203.2 x 1,371.6mm) | 39 x 8 x 54" (990.6 x 203.2 x 1,371.6mm) | 36 x 8 x 50" (914.4 x 203.2 x 1,270.0mm) | 39 x 8 x 54" (990.6 x 203.2 x 1,371.6mm) | 43 x 8 x 62" (1,092.2 x 203.2 x 1,574.8mm) |
UPC Code | 735029307839 | 735029308027 | 735029308065 | 735029307846 | 735029308041 | 735029308133 |
