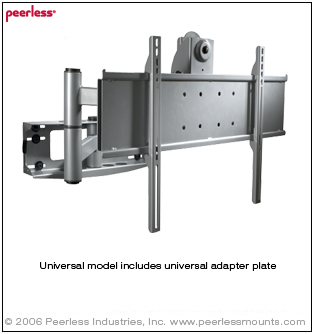

Peerless Articulating Wall Arm for 32" - 50" Plasma and LCD - PLA50-UNL

Peerless Articulating Wall Arm for 32" - 50" Plasma and LCD - PLA50-UNL

Offer the best view in the room with ability to swing, tilt or articulate the most popular sizes of plasma and LCD screens. Self-lubricating bushings enable the arms to smoothly extend, while adjustable tilt and pivot position the screen to the optimal viewing angle. The PLA50-UNLP offers versatility for the most popular sizes of screen in a wide range of installations in lobbies, hotel rooms, boardrooms, public displays or home theaters.

Features:

• +10°/-5° tilt
• Up to 180° pivot
• +/-7° roll to level screen horizontally at any position
• Universal models extend out to 30.4", retracts to 5.6"
• Includes mesh cord sheath and cable ties to neatly manage cords
• Mounts to two wood studs or concrete
• Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts

Distance from wall: Universal Models: 5.6"–30.4" (142–772 mm)
Dedicated Models: 4.5"–29.3" (114–744 mm)

Tilt | Swivel | Roll: +10/-5° | ±90° | ±7°

Max load: 150 lb (68 kg)

Product Dimensions (W x H x D):

Universal Models: 30.7" x 19.1" x 5.6"–30.4" (780 x 486 x 142–772 mm)

Dedicated Models: 19.75" x 18.7" x 4.5"–29.3" (501 x 474 x 114–744 mm)

Mounting Surfaces: Wood stud, concrete and metal stud (Metal stud accessory required)

Ship Weight: Universal Models: 43 lb (19.5 kg)
Dedicated Models: 28.5 lb (12.9 kg)
