Peerless Articulating Wall Arm with Vertical Adjustment for 42" - 71" Plasma and LCD - PLAV70-UNLP
Peerless Articulating Wall Arm with Vertical Adjustment for 42" - 71" Plasma and LCD - PLAV70-UNLP

Peerless Articulating Wall Arm with Vertical Adjustment for 42" - 71" Plasma and LCD - PLAV70-UNLP

Part Number: PLAV70-UNLP
Our Price: $552.00
Availability: Usually ships the same business day.
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

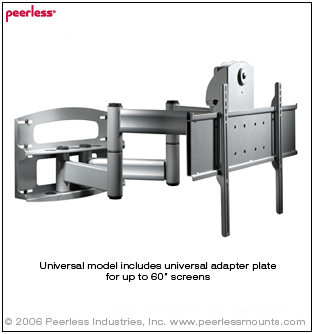

Peerless Articulating Wall Arm with Vertical Adjustment for 42" - 71" Plasma and LCD - PLAV70-UNLP -Designed to handle the heaviest screens, the PLAV70-UNL features dual-arm, all-steel construction that holds screens up to 60" and weighing up to 200 lb. The PLAV70-UNL's self-lubricating bushings enable your screen to smoothly articulate, while adjustable tilt and pivot allow you to position your screen for the optimal viewing angle. Swing, tilt and extend your plasma or LCD screen, even in and out of recessed cubby holes and custom frames with the vertical adjustment feature that provides the capability to raise or lower your screen for a perfectly aligned installation.

Features:
  • Dual-arm construction
  • Anti-lockout feature prevents joint binding
  • +/-1" vertical adjustment located within reach behind screen
  • +10°/-5° tilt
  • Up to 180° pivot
  • +/-7° roll to level screen horizontally at any position
  • Universal models extend out to 31.8", retracts to 5.6"
  • Snap-cover cord management and mesh cord sheaths
  • Mounts to two wood studs or concrete (accessory required)
  • Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts

Specifications

Distance from wall:
Universal Models: 5.6"–30.4" (142–772 mm)
Dedicated Models: 4.5"–29.3" (114–744 mm)

Tilt | Swivel | Roll: +10/-5° | ±45° | ±7°

Max load: 200 lb (90 kg)

Product Dimensions (W x H x D):
Universal Models: 33.5" x 21.67" x 5.6"–30.4" (850 x 550 x 142–772 mm)

Dedicated Models: 19.75" x 21.67" x 4.5"–29.3" (502 x 550 x 114–744 mm)

Mounting Surfaces: Wood stud, concrete and metal stud (Metal stud accessory required)

Ship Weight:
Universal Models: 72.4 lb (32.9 kg)
Dedicated Models: 58.5 lb (26.5 kg)
