Home / Flat Panel Mounts Large Screens / Chief Large Flat Panel Swing Arm Wall Display Mount – 25” Extension 40”-84” – PNRUB

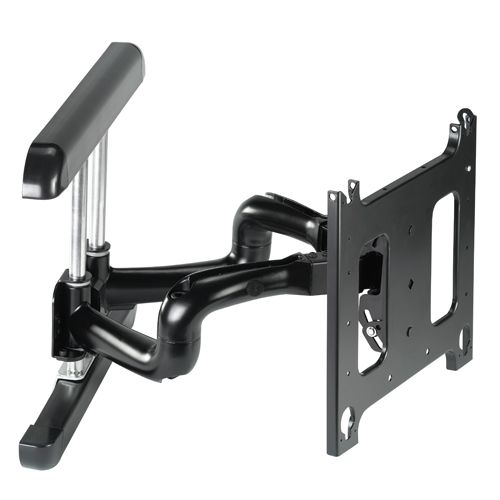

Chief Large Flat Panel Swing Arm Wall Display Mount – 25” Extension 40”-84” – PNRUB

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Focused Technology is a Proud

Chief Large Flat Panel Swing Arm Wall Display Mount – 25” Extension 40”-84” – PNRUB

View large flat panel displays from any angle.

Note: This mount may be incompatible with your flat panel display. Please contact our sales department at 1-(888) 686-0551 to ensure compatibility.

Features

Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity
Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
Q-Latch Mounting System secures flat panel to mount with a latching flag
Easy connect/disconnect without tools
Extends up to 25 (635 mm) for viewing from any angle
CableTrac System provides channeled cable management for easy cable routing
Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen

Specifications

Color:	Black
Lateral Shift:	9" (229 mm)
Manual Height Adjustment:	1
Maximum Extension:	25" (635 mm)
Minimum Depth:	3.25" (82.6mm)
Mounting Pattern Compatibility (Universal Versions):	200 x 200mm - 862 x 517mm
Notes:	Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
Orientation:	Landscape, Portrait
Overall Dimensions (H x W x D):	21.2" x 27.1" x 3.3" (538 x 687 x 84mm)
Post-Installation Leveling (Roll):	Yes
Shipping Weight:	66.00 lbs
Solution Type:	Universal
Tilt:	+ 5° , - 15°
Typical Screen Sizes:	42 - 71"
Wall Stud Compatibility (inches):	16
Weight Capacity:	200 lbs (90.7kg)
