Premier Tilting Mount for Flat-Panels up to 160 lb./73 kg - CTM-MS1

Description

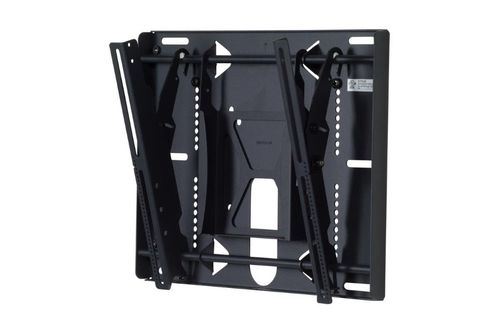

Tilting Mount for Flat-Panels up to 160 lb./73 kg

The CTM-MS1 mounts to walls, floor stands, carts and ceiling adapters. The universal tilting mount feature patented Griplates™ (US Patent number 8,035,757 B2), which hold the flat-panel display permanently in the desired position. The patented Clevis tilting mechanism allows 12° of continuous tilt and built-in lateral shift makes precise alignment effortless.

Note: shown with optional accessory, the CTM-MAC2 which is a bracket for holding a media player.

Specifications

Shipping Weight :	18.3 lb. \| 8.30 kg
Weight Capacity per Mount :	160 lb. \| 72.57 kg
Number of Mounts :	1
Total Weight Capacity :	160 lb. \| 72.57 kg
Width :	20.54 in. \| 521.72 mm
Height :	15.5 in. \| 393.70 mm
Depth :	2.45 in. \| 62.23 mm
Mounting Pattern Type :	Range
Mounting Pattern :	100 x 100 (Min) , 490 x 360 (Max) mm
Tilt :	+12.00°
Shipping Box DIM Sizes :	2.3 in. (wide) x 16.8 in. (high) x 21 in. (deep) \| 58.42 mm x 426.72 mm x 533.4 mm
UPC :	829973150310
