Premier Ceiling Mount for Dual Flat-Panels up to 175 lb./79.5 kg - ECM-D70T

Description

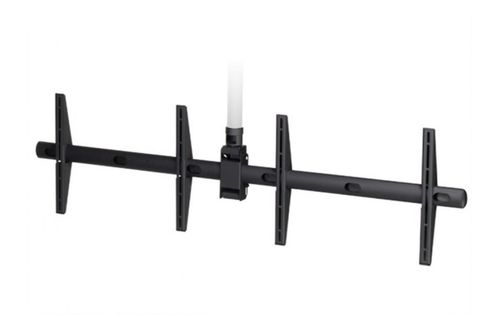

Ceiling Mount for Dual Flat-Panels up to 175 lb./79.5 kg

The ECM Ceiling Mount for Dual Flat Panels features side by side flat panel mounts, which hold displays in either portrait or landscape orientation with a weight capacity up to 175 lb./79.5 kg per head. It offers dynamic viewing with 360° swivel and 15° of tilt, and fits a 2 in. NPT extension pipe. The mount's ultra-thin design keeps the center of gravity close to the flat panels for better balance. Integrated cable management keeps the installation clean and organized. Optional brackets are available for attaching mini PCs and digital media players and servers.

Specifications

Shipping Weight :	48 lb. \| 21.77 kg
Weight Capacity per Mount :	175 lb. \| 79.38 kg
Number of Mounts :	2
Total Weight Capacity :	350 lb. \| 158.76 kg
Width :	71.2 in. \| 1808.48 mm
Height :	22.5 in. \| 571.50 mm
Mounting Pattern Type :	Range
Mounting Pattern :	200 x 200 (Min) , 782 x 506 (Max) mm
Typical Display Sizes :	40.00 in. & up
Tilt :	+15.00°
Rotation :	360°
Plate Size :	2 in. (wide) x 0 in. (high) \| 50.80 x 0.00 mm
Shipping Box DIM Sizes :	18 in. (wide) x 5 in. (high) x 75 in. (deep) \| 457.2 mm x 127 mm x 1905 mm
UPC :	829973150860
