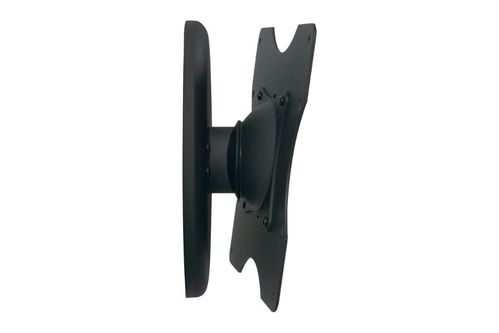

Premier Single stud tilt and pivot mount for flat panels up to 50 lb./23 kg. - PTM-B

Description

Single stud tilt and pivot mount for flat panels up to 50 lb./23 kg.

The PTM-B Single Stud Tilt and Pivot Mount holds flat panel displays up to 50 lb. The wall mount offers 15° of smooth adjustment with Radial Glide™ and comes with cable routing holes to route cables directly into the wall for a clean appearance. OSHPD approved and UL listed, it is also available in silver (PTM).

Specifications

Shipping Weight :	6.4 lb. \| 2.90 kg
Weight Capacity per Mount :	50 lb. \| 22.68 kg
Number of Mounts :	1
Total Weight Capacity :	50 lb. \| 22.68 kg
Width :	8.88 in. \| 225.55 mm
Height :	9.5 in. \| 241.30 mm
Depth :	2.84 in. \| 72.14 mm
Mounting Pattern Type :	Fixed
Mounting Pattern :	75 x 75 (Min) , 100 x 100 , 200 x 100 , 200 x 200 (Max) mm
Typical Display Sizes :	10.00 in. & up
Tilt :	+15.00°/ -15.00°
Rotation :	360°
Pitch :	+15.00°/ -15.00°
Shipping Box DIM Sizes :	9.3 in. (wide) x 2.8 in. (high) x 10 in. (deep) \| 236.22 mm x 71.12 mm x 254 mm
UPC :	829973101114
