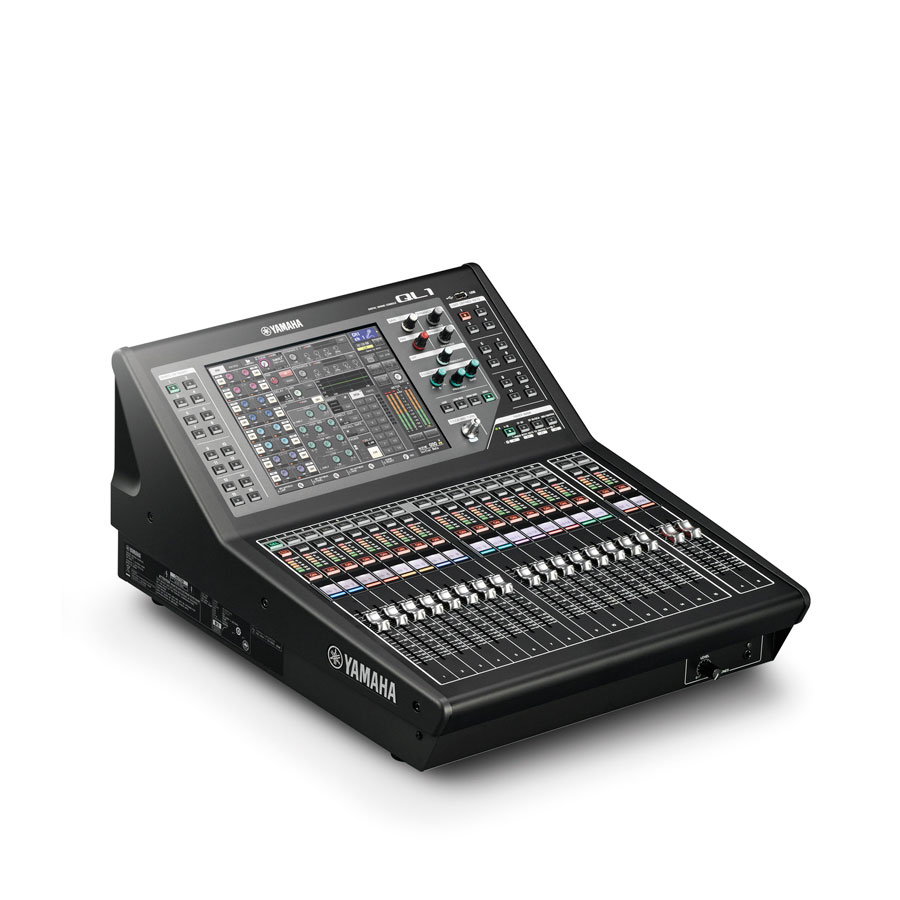

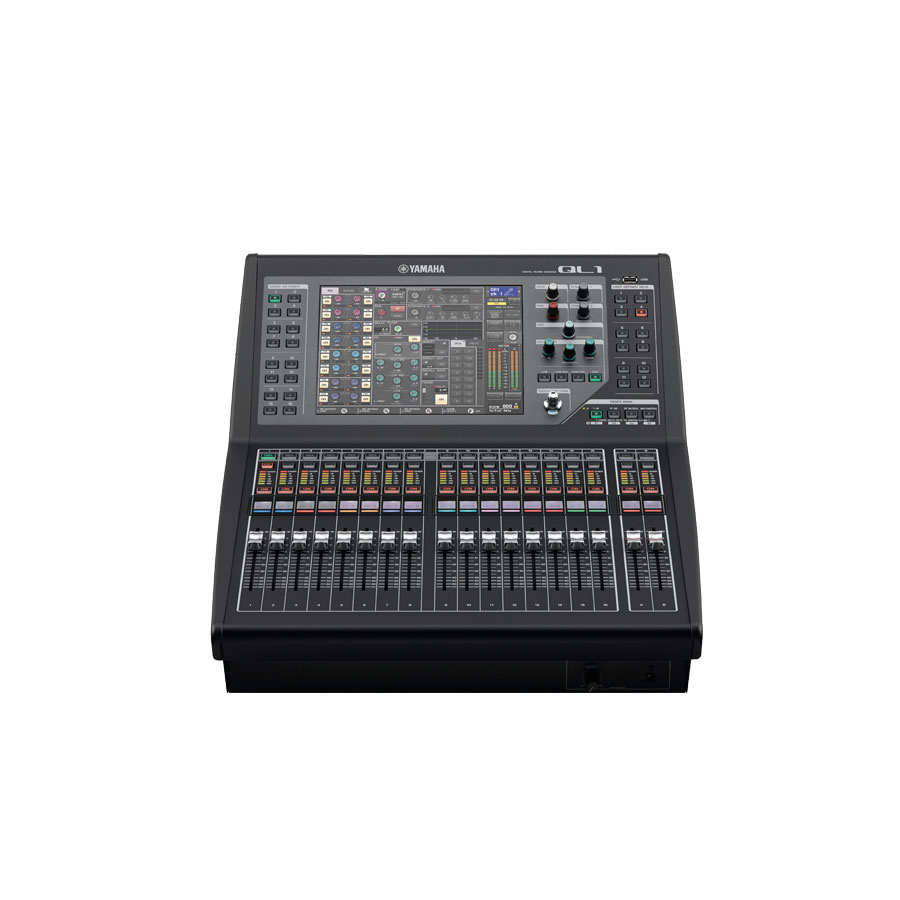

Yamaha QL1 16 Channel Rack mountable Affordable Digital Console

The Yamaha sound begins with reproduction that is faithful to the source. QL series consoles feature circuitry and components that have been designed and selected with the utmost care, achieving outstanding audio purity from input to output. With that solid sonic foundation it becomes possible to take full advantage of built-in premium internal processors such as the Portico 5033/5043 created in cooperation with Rupert Neve, to shape and create as required. For a wide range of speech applications built-in automatic mixing functionality from Dan Dugan Sound Design provides optimum channel balance while allowing the operator to concentrate fully on optimizing the overall sound.

It All Begins with Natural Sound

In order to take maximum advantage of evolved processing potential to sculpt creative new soundscapes, the engineer must have uncolored, natural sound as a starting point. Yamaha’s unwavering natural sound philosophy is fully implemented in the QL series, resulting in accurate reproduction that is faithful to the source.

Every Component Contributes to Superior Sonic Precision

Full creative freedom can only be achieved when the sonic foundation is accurate, uncolored, and faithful to the source. The same pure, natural sound that is a highly regarded feature of the CL series is achieved in the compact QL series consoles as well. Every detail, from mechanical construction through port location, power supply, grounding, and individual components has been painstakingly analyzed and brought together in a system that affords extraordinary audio quality. Noise that can affect digital mixer performance in a number of ways has also been thoroughly scrutinized and effectively eliminated. Because it can affect AD/ DA converter performance, system clock jitter has been subject to detailed analysis and optimized by revising the internal FPGA layout and rerouting the clock signal. All of these details combine to realize performance that not only passes the strictest scientific tests, but also satisfies the critical ears of some of the most demanding sound engineers in the business.

Product Highlights Item

• Mix channels: 32 mono, 8 stereo
• Rack mountable with optional RK1 Rack Mount Kit.
• Busses: 16 mix, 8 matrix (Input to Matrix supported).

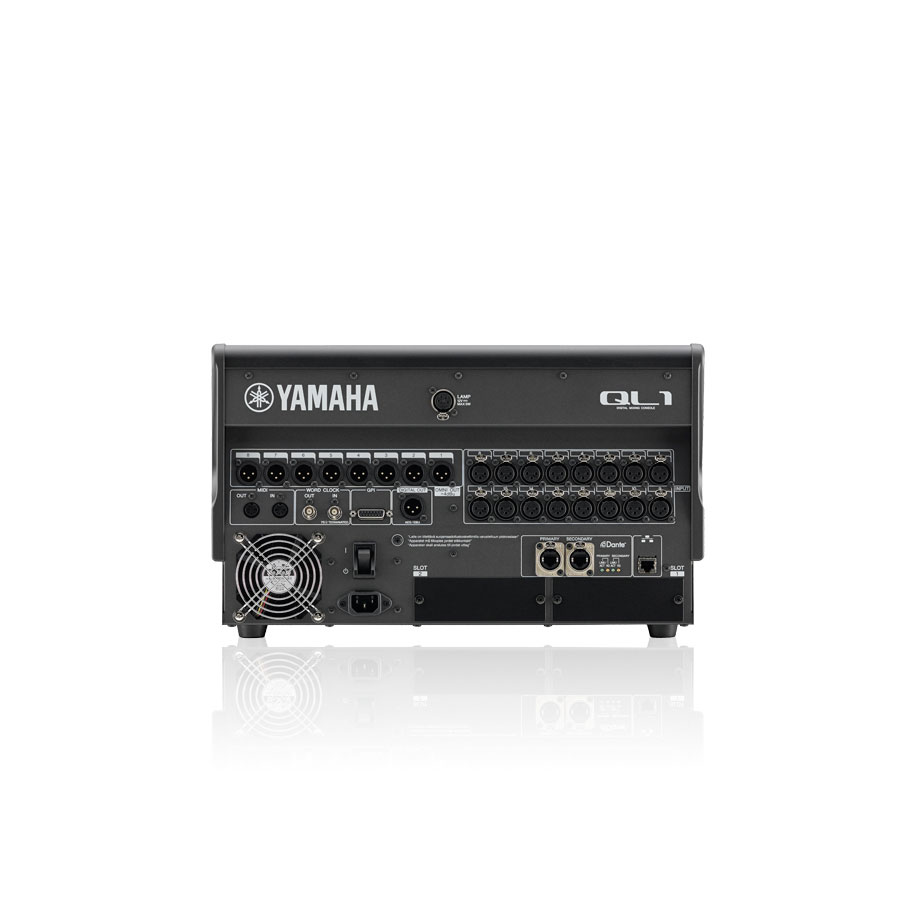

• Local I/O: 16 in, 8 out.

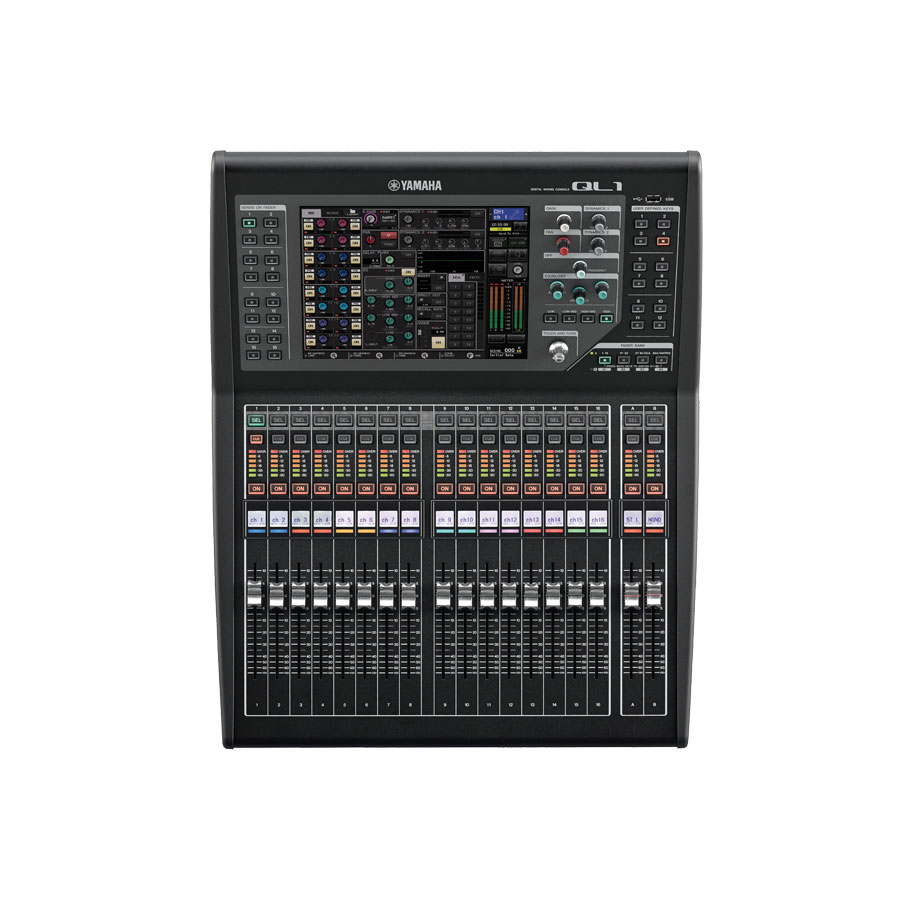

• Fader configuration: 16 + 2 (Master)
• Dante networking capability
• 2 Card Slots
• built-in Dugan Automixing
