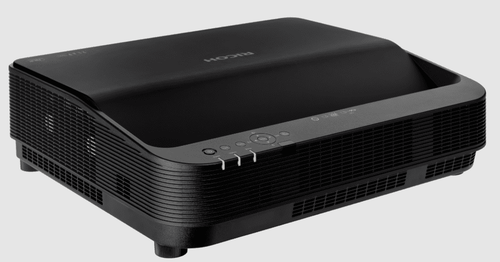

Ricoh Ultra Short Throw Laser Projector UHL3660
Description
Ultra Short Throw Laser Projector UHL3660
The RICOH PJ UHL3660 UST Laser Projector delivers a premium viewing experience in every environment. Where space is limited, you need to project in every environment and you want a premium viewing experience this is the projector.
The Ricoh UHL3660 sets a new standard in ultra-short throw (UST) laser projectors, delivering vibrant, laser-sharp 4K UHD visuals with an impressive 6,500 lumens of brightness. Featuring OptiBright* technology, its dual laser light sources and phosphor wheels maximize light efficiency, ensuring superior brightness and long-lasting performance.
Supporting display sizes ranging from 85" to 160", the UHL3660 ultra-short throw laser projector transforms any space, projecting from just centimeters away. Whether you're delivering engaging presentations in the boardroom, creating an immersive digital gallery experience, or bringing cinematic quality to your home theater, the UHL3660 is designed to deliver stunning visual experiences that captivate any audience.
Details
- 0.24 Throw ratio projects from just 1-38 cm away (0.39-14.96 in)
- Supports screen sizes from 85" to 160"
- 6,500 lumens of brightness and up to 40,000 hours of maintenance free operation
- 4K UHD resolution with HDR support
- Supports both 16:9 and 16:10 aspect ratios
- HDMI 2.0 and HDBaseT connectivity, and wireless projection via Miracast for Windows & Android
- 360-degree installation capable for ceiling, floor, or wall mounting flexibility, and seamless compatibility with both Ricoh and third-party AV control systems
Specifications
| Detailed Specifications | |
| Resolution: | 4K (3840 x 2160 pixels) * |
| Display Device: | 0.65" DLP x 1 |
| Brightness: | 6,500 Lumens |
| Contrast Ratio: | 5,000,000:1 |
| Video Signals: | 720p, 1080i, 1080p/60 |
| Aspect Ratio: | Auto (16:9, 16:10, 4:3) |
| Number of Colors: | Up to 1.07 billion colors |
| Lamp: | Laser |
| Typical Lamp Life: | Constant Power: 20,000 hours
Constant Luminance*2: 26,000 hours Eco Mode*2 : 30,000 hours Long Life Mode*2: 40,000 hours |
| Lens: | Powered Focus, Fixed Zoom |
| Throw Ratio: | 0.241 |
| Image Size: | 85-160 inch |
| Throw Distance: | 0.01 - 0.38m (from the edge of unit) |
| Keystone Correction: | Horizontal: ±15 degree / Vertical: -20,+5 degree |
| Projection Methods: | 360-degree installation |

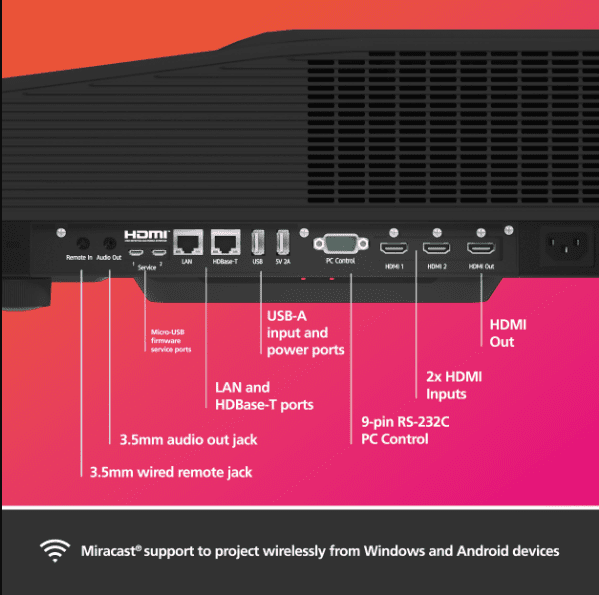

| Inputs: | HDMI 2.0 / HDCP 2.2 x2 HDBase-T RJ45 *3 USB typeA |
| Outputs: | HDMI Out (HDMI 2.0 / HDCP 2.2)
3.5mm mini jack |
| Speaker: | 3W×2, 5W×1 Stereo Speakers (Total Output Power: More than 10W) |
| Audible Noise: | Standard: 36dB / Eco: 32dB |
| Weight: | 25.4lbs (11.5kg) |
| Dimensions: | 20.87 x 18.50 x 5.47 inches (530 x 470 x 139 mm) |
| Accessories: | N/A |
| Remote Control: | Wired LAN RJ45 (for PJ control and firmware updates) D-sub 9pin (RS232C) Wired Remote (3.5mm mini jack) |
| Mfg Warranty: | This Warranty covers the Product for the period of three (3) years or 20,000 hours of use, whichever comes first from the date of purchase (“Warranty Period”). |
| Product Data Sheet: |  Product Data Sheet |
