Projection Screen Fabrics
Choosing the correct screen fabric to complement your projector can be as important as choosing the projector itself. At Focused Technology, we offer a wide selection of different screen fabrics from the best screen manufacturers in the industry. For information on a particular screen fabric, please click on the desired fabric in the table of contents below.
Table of Contents
- OptiView Self-Supporting Surfaces
- Matt White XT1000E
- Contrast Grey XH800E
- Contrast White XH1100E
- Argent White XH1500E
- Pearl White CH1900E
- Matt White XT1000V
- Pure White XT1300V
- Grey XH600V
- Pearl White MH1500V
- ReAct MS1000V
- Matt White XT1000VB
- ClearSound Acoustically Transparent Surfaces
- ClearSound White Weave XT900E
- ClearSound Grey Weave XH600E
- ClearSound NanoPerf XT800V
- ClearSound Perf XT900V
- ClearSound Perf XT950E
- CineFlex Rear Projection Tensioned Surfaces
- HD Progressive 0.6
- HD Progressive 0.9
- HD Progressive 1.1
- HD Progressive 1.3
- HD Progressive 1.1 Perf
- Parallax 0.8
- Parallax UST 0.45
- Parallax Stratos 1.0
- DualVision
- Ultra Wide Angle
- DA-100 WA
- DA-50 WA
- DA-75 WA
- Da-Mat
- High Contrast Da-Mat
- Cinema Vision
- High Contrast Cinema Vision
- Pearlescent
- 3D Virtual Gray
- Audio Vision
- DA-100
- DA-130
- DA-150
- DA-180
- DA-230
- Video Vision
- High Contrast Audio Vision
- Da-Tex
- High Contrast Cinema Perf
- Matte White
- Perforated Matte White
- High Contrast Da-Tex
- 3D Virtual Black
- High Contrast Matte White
- Video Spectra 1.5
- Silver Lite 2.5
- AcousticPro UHD
- CineWhite
- Acoustic Pro 1080P3
- CineGrey
- CineGrey 5D
- Max White

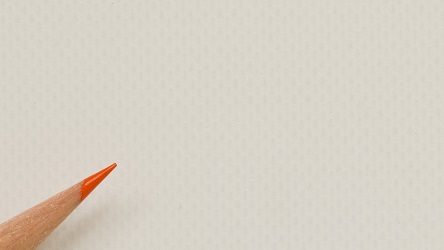

- Max White B
- Max White Fiberglass
- VersaWhite
- WraithVeil
- WraithVeil 2
- PowerGain
- AirBright 3D2
- AcousticPro 1080P2
- CineGrey 3D
- DynaWhite
- SpectraWhite Fiberglass
- StarBright 4
- StarBright CLR
- CineWhite UHD
- DynaBrite
- WraithVeil Dual
- CineGrey 3D AT

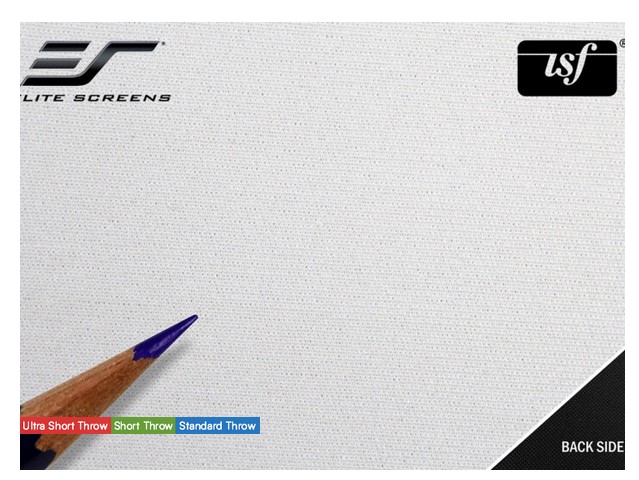

- CineWhite A8K

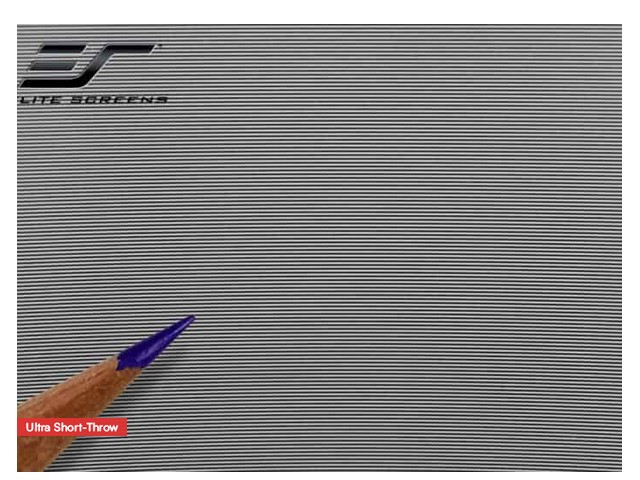

- CLR 3
- DarkStar
- DarkStar 9
- CineWhite X

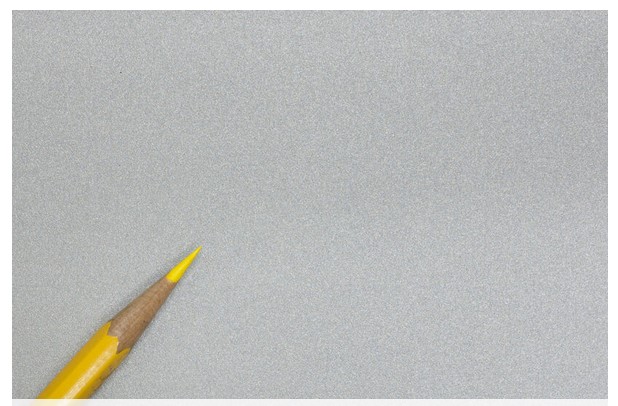

- CineGrey 4D
Draper Screen Fabrics
Draper has been manufacturing projection screens for over 50 years. They began with a sturdy fiberglass base matt white surface, made in the midwestern United States, and they still offer screens made with this viewing surface today. Over the years, they have grown and added many new surfaces to meet different needs. Today, Draper offers over 30 surface options, including flexible and self-supporting fabrics, and surfaces for front and rear projection, with different gain, contrast, and color options.
Draper has made a major investment in building a state of the art testing lab for viewing surfaces and other products. They have broadened their range of viewing surfaces to include a full spectrum of gain options, from 0.6 through 3.2. They now offer three distinct types of acoustically transparent materials. Their viewing surfaces have new names and useful codes to help everyone identify their qualities and characteristics at a glance. They have prepared detailed technical documents outlining the results of the many tests they perform on every viewing surface. Today Draper’s offering of viewing surfaces is one of the best in the industry.
OptiView Self-Supporting Surfaces
OptiView surfaces are all self-supporting and do not require tensioning to perform well. These surfaces are generally installed on motorized or manual roller screens with a dowel below the screen surface. Most surfaces in this group have a tearproof fiberglass textile base. OptiView surfaces are very sturdy and suitable for use in a variety of settings.
Matt White XT1000E
The standard to which all other screen surfaces are compared. Preferred viewing surface in educational and commercial markets. A matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Offers accurate color rendition, and superior clarity due to its smooth, non-embossed surface. Requires adequate provision for the control of ambient light in the audience area. Unity gain with a panoramic 180° cone. This surface has achieved GREENGUARD GOLD Certification.
Contrast Grey XH800E (formerly High Contrast Grey)
Smooth black backed grey surface offers excellent resolution and enhances color contrast and black levels in the projected image. Recommended for use with moderate and high output digital projectors. Performs well in conditions of ambient light. Full 180° viewing cone. This surface has achieved GREENGUARD GOLD Certification.
Contrast White XH1100E
Black backed white diffusion coating over a grey base material, yields a surface with the best qualities of both matt white and contrast grey screen fabrics. Recommended for use with low to moderate light output digital projectors, where some provision for light control exists. Improves the quality of blacks without affecting whites or sacrificing gain. Flame and mildew resistant.
Argent White XH1500E
Black backed matt white base material with luminous coating. Offers high reflectivity, while maintaining a broad viewing cone. Provides excellent resolution and color balance. Consider for use with moderate light output projectors in situations where ambient light cannot be adequately controlled. Flame and mildew resistant.
Pearl White CH1900E
Black backed matt white surface with pearlescent surface coating. Offers excellent resolution, color balance and uniformity. Tolerates a higher ambient light level than many front projection screen surfaces. Moderate viewing cone. Flame and mildew resistant.
OptiFlex Tensioned Surfaces
The OptiFlex surfaces are suitable for tensioning and are available on permanently tensioned screens and/or tab tensioned roller-operated screens. Choose OptiFlex for the flattest viewing surfaces.
Matt White XT1000V (formerly M1300)
The perfect matt white diffusing surface. Recommended for use with all types of projectors provided ambient light can be reasonably controlled. This surface is well suited for blending applications. Reflects a uniformly bright image over complete 180° viewing cone with precise resolution and accurate color balance. This surface has achieved GREENGUARD GOLD Certification. Available with black backing upon request.
Pure White XT1300V
Pure White XT1300V offers a 30% boost in brightness over a traditional matt white surface while still maintaining an extremely wide viewing cone, with half gain angle over 90 degrees. No color shift at any angle, excellent white field uniformity. Available with black backing and without.
Grey XH600V (formerly HiDef Grey)
Grey front projection surface with black backing provides excellent contrast and black reproduction. Intended for use with moderate to high output digital projectors. Grey color enhances color contrast and black levels in the projected image. Also allows for more ambient light in the audience area than matt white surfaces. Relatively broad viewing cone. This surface has achieved GREENGUARD GOLD Certification. Available with black backing upon request.
Pearl White MH1500V (formerly M2500)
Black backed matt white surface with pearlescent coating. Offers excellent resolution, color balance and uniformity. Tolerates a higher ambient light level than many front projection screen surfaces. Moderate viewing cone.
ReAct MS1000V
ReAct MS1000V is an opaque projection surface which offers enhanced color contrast even in ambient light. ReAct MS1000V is fully HD compliant and is available on both permanently tensioned and tab-tensioned screen models. It is perfect for use in multipurpose s where the lighting is hard to control and the screen needs to be out of sight when not in use.
Matt White XT1000VB
Draper's M1300 viewing surface with a black backing for situations where ambient light behind the screen is an issue. No half-gain angle. GREENGUARD GOLD certified.
ClearSound Acoustically Transparent Surfaces
Whenever sound sources are to be located behind the viewing surface ClearSound surfaces are designed to allow sound through and still perform well optically. Standard and microscopic perforations are available, and the innovative woven acoustically transparent (AT) fabrics, first available through Draper. The combination of self-supporting and tensioned ClearSound surfaces means that almost any Draper projection screen model can be provided with a ClearSound viewing surface. Acoustically transparent surfaces are not recommended for use in screen sizes less than 80” wide.
ClearSound White Weave XT900E (formerly AT1200)
The most innovative and versatile acoustically transparent screen material available. Reflects uniform image over full 180° field with accurate color fidelity. The finely woven textile combines the smallest openings for improved visual performance with the largest number of openings, allowing minimum interference to the audio signal. Some control of ambient light is recommended. Flame and mildew resistant. It is recommended that viewers be 10 feet or more from the screen so that optical properties are not compromised.
ClearSound Grey Weave XH600E (formerly AT Grey)
Offers the acoustical properties of ClearSound White Weave XT900E, while providing the best optical qualities of both matt white and contrast grey screen fabrics. Provides vivid color contrast over a full 180° viewing cone. The finely woven textile combines the smallest openings for improved visual performance with the largest number of openings, allowing minimum interference to the audio signal. Flame and mildew resistant. It is recommended that viewers be 10 feet or more from the screen so that optical properties are not compromised.
ClearSound NanoPerf XT800V
Microscopic perforations in the black backed fabric create an acoustically transparent surface that does not compromise audio quality when speakers are placed behind the screen, while providing a beautiful image. The projected image is gorgeous, with a full 180° viewing cone and accurate color reproduction. Ideal for home theatre. Openings in this type of surface are smaller and more numerous than standard perforated surfaces allowing viewing distances of 10 feet or more and improved acoustics.
ClearSound Perf XT900V
Flexible black backed matt white perforated surface. Reasonable control of ambient light is recommended. This surface is well suited for larger screens and larger s. Due to the size of openings in this surface type it is recommended that viewers be 20 feet or more from the screen so that optical properties are not compromised.
ClearSound Perf XT950E
Textile black backed matt white perforated surface. This surface is well suited for larger screens and larger s. Due to the size of openings in this surface type it is recommended that viewers be 20 feet or more from the screen so that optical properties are not compromised.
CineFlex Rear Projection Tensioned Surfaces
Draper has offered a CineFlex flexible rear projection surface for many . CineFlex has grown into a family of surfaces, offering choices of gain* and color to meet a range of rear projection needs. CineFlex surfaces are available on a wide range of permanently tensioned, portable, and tab tensioned projection screen models. CineFlex surfaces include:
CineFlex CH1200V (formerly CineFlex)
Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.
CineFlex MH800V (formerly Low-Gain CineFlex)
Low gain flexible rear material. Designed for use with high light output projectors and wide audience seating patterns. Offers rich color contrast, well-defined resolution, and a broad viewing cone.
CineFlex White XT700V
The CineFlex White XT700V white rear projection surface works well for edge matching or blending and short throw rear projection applications. A reasonable control of ambient light is recommended. Surface has a broad viewing cone and high resolution. Typically used as a rear projection surface, it can be used in dual or low gain front projection applications. This is a foldable viewing surface that can be used on folded, fixed, or roller-operated screens.
CineFlex White XT600V (formerly UniFlex White)
This white rear projection surface works well for edge matching or edge blending applications, and also for short throw rear projection. Broad viewing cone and high resolution. Reasonable control of ambient light is recommended.
Da-Lite Screen Fabrics
Surfaces formulated by Da-Lite chemists and optic technicians are some of the best surfaces for your image. Each Da-Lite surface is specifically formulated to preserve, and in some cases enhance, every pixel projected resulting in expert clarity, rich contrast, vivid color and brightness.
HD Progressive 0.6
Ideal for high output projectors or applications where projector brightness and screen size require low gain, the gray surface compensates for a brightly lit environment so that image contrast is preserved. In Low ambient light, HD Progressive 0.6 provides deep contrast for a rich enhanced image, and is typically used with video. Seamless in any width up to 16' in height.
HD Progressive 0.6 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
HD Progressive 0.9
Ideal for moderate to high output projectors, the light gray surface achieves a perfect balance between color reproduction and image contrast. Seamless in any width up to 16' in height.
HD Progressive 0.9 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
HD Progressive 1.1
Ideal for applications where projector brightness and screen size require an increase in gain, the white surface offers true color reproduction and fidelity. Seamless in any width up to 16' in height.
HD Progressive 1.1 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
HD Progressive 1.3
Ideal for applications where projector brightness and screen size require an increase in gain, the purest white HD Progressive surface offers true color reproduction, and allows for more flexibility with ambient light conditions. It also allows for easy viewing of detail in video as well as charts and graphs in a corporate setting. Seamless in any width up to 16' in height.
HD Progressive 1.3 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
HD Progressive 1.1 Perf
Ideal for applications where projector brightness and screen size require an increase in gain, the white surface offers true color reproduction and fidelity. The perforated vinyl surface allows for the installation of speakers behind the surface. Available in any width up to 8' in height.
HD Progressive 1.1 Perf can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Parallax 0.8
Parallax is an ambient light-rejecting technology that features a micro-layered optical lens system that rejects light. This new technology mimics the look of a television when it is on and when it is off, but without the glare from windows or lighting fixtures.
With extremely wide viewing angles, no speckle and no glare, the surface is ideal for applications in Pro AV. Additionally, the surface is flexible, ships in a roll and is easy to install.
Each layer of Parallax plays a role in preserving the image that is reflected back to the viewer in high ambient light environments. Some layers absorb light while one special layer is shaped like a microscopic saw-tooth that blocks light from above resulting in the preservation of high-contrast, bright images in brightly lit environments.
- Horizontal Half Angle: 85º
- Vertical Half Angle: 17º
Parallax UST 0.45
Parallax is an ambient light-rejecting technology that features a micro-layered optical lens system that rejects light. This new technology mimics the look of a television when it is on and when it is off, but without the glare from windows or lighting fixtures. Parallax UST 0.45 is unique because it is designed to be used with an ultra short throw projector that is mounted below the screen.
With extremely wide viewing angles, no speckle and no glare, the surface is ideal for applications in Pro AV. Additionally, the surface is flexible, ships in a roll and is easy to install.
Each layer of Parallax plays a role in preserving the image that is reflected back to the viewer in high ambient light environments. Some layers absorb light while one special layer is shaped like a microscopic saw-tooth that blocks light from above resulting in the preservation of high-contrast, bright images in brightly lit environments.
- Horizontal Half Angle: 80º
- Vertical Half Angle: 55°
Parallax Stratos 1.0
Parallax® Stratos 1.0 is a Contrast Based, 80% ALR surface engineered for high value, large scale projects. This surface is available up to 16' H in a variety of products, including Da-Lite’s core lineup of electric screens and fixed frames to expand your product portfolio and installation applications. Appropriate for standard throw projection (1.0:1 or greater). Parallax Stratos 1.0 can be gently cleaned with water, and is mildew resistant.
Dual Vision
Dual Vision is a flexible vinyl surface ideal for rear projection, but capable of both front and rear projection. Dual Vision is ideal for video projection under controlled ambient light conditions. With an exceptionally wide viewing cone and light gray tint, a sharp image with no color shift is observed regardless of location in the room. Seamless in any width up to 16' in height.
Dual Vision can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Ultra Wide Angle
Ultra Wide Angle is a flexible vinyl rear projection surface designed for wide viewing angles with controlled ambient light. It is ideal for installations using multiple projection edge blending or wide format screens with short focal length projection lenses. Ultra Wide Angle dramatically reduces the potential of hot spotting. Seamless in any width up to 16' in height.
Ultra Wide Angle can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
DA-100 WA
A light gray diffusion coating that provides a unity gain and especially wide viewing angles. This wide angle optical coating is designed for use in applications where a short throw lens is required. Due to the increased half angles, DA-100 WA performs well with wide format screens. From the viewer's perspective, side-to-side uniformity of the screen is maximized.
DA-100 WA can be cleaned with mild soap and water, is flame retardant and mildew resistant.
DA-50 WA
Specifically designed for applications using high lumen projectors in conjunction with short throw lenses, this optical coating provides wider half-gain angles than traditional coatings, reducing the incidence of hot spotting. The DA-50 WA coating is unique in its ability to offer a high contrast tint to the projected image while maintaining wide viewing angles.
DA-50 WA can be cleaned with mild soap and water, is flame retardant and mildew resistant.
DA-75 WA
A light gray diffusion coating with a .75 gain and extremely wide viewing angles. DA-75 WA is designed for use in applications where a short throw lens is required. Due to the increased half angles, DA-75 WA performs well with wide format screens. From the viewer's perspective, side-to-side uniformity of the screen is maximized.
DA-75 WA can be cleaned with mild soap and water, is flame retardant and mildew resistant.
Da-Mat
Da-Mat is a unity gain vinyl surface with a smoother surface than Matte White. It features a white surface for good color reproduction for environments with controllable ambient light. Seamless in any width up to 16' in height.
Da-Mat can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
High Contrast Da-Mat
High Contrast Da-Mat® is a vinyl surface that features a dark gray base for deeper reproductions of black, which improves the perception of contrast. Best in environments with a high output projector and completely controlled ambient light. Seamless in any width up to 16' in height.
High Contrast Da-Mat can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Cinema Vision
Cinema Vision is designed to provide a higher amount of brightness for lower output projectors. Its increased reflectivity enhances brightness in situations where a moderate level of ambient light is present. Ideal for video images. Seamless in any width up to 16' in height.
Cinema Vision can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
High Contrast Cinema Vision
High Contrast Cinema Vision features a gray base for deeper reproductions of black, which improves contrast, and an increased reflectivity to enhance brightness for moderate ambient light. Ideal for video images. Seamless in any width up to 16' in height.
High Contrast Cinema Vision can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Pearlescent
Pearlescent offers a higher amount of reflectivity than Da-Mat, and is designed for use in applications where moderate viewing angles are required. This surface is a good choice when producing video images with a lower output projector or where there is a high amount of ambient light present. Seamless in any width up to 16' in height.
Pearlescent can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.

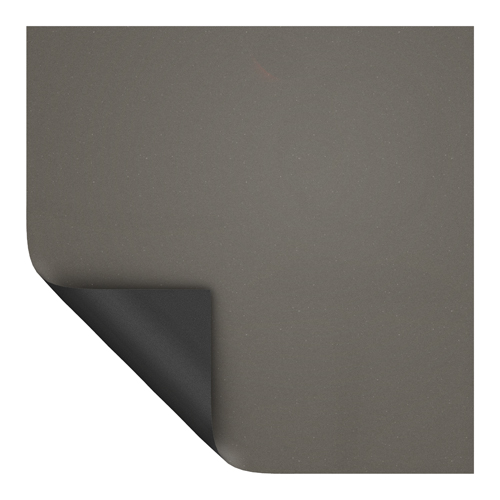

3D Virtual Gray
3D Virtual Gray is designed for passive 3D front projection. 3D Virtual Gray is a vinyl projection surface that retains 99% of polarized light. Other characteristics include the ability to maintain high extinction values, eliminate ghosting or crosstalk and excellent contrast. 3D Virtual Gray is ideal for low ambient light. Available in any width up to 16' in height.
3D Virtual Gray can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Audio Vision
Audio Vision is a unity gain, perforated vinyl surface that allows for the installation of speakers behind the surface, and offers good color reproduction in environments with controllable ambient light. Available in any width up to 8' in height.
Audio Vision can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
DA-100
A neutral gray diffusion coating that provides contrast enhancement while maintaining uniformity and color rendition. Its versatility makes it a good choice for situations with good control over ambient light and where a wide viewing angle is necessary. It is also well suited for high resolution applications.
DA-100 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
DA-130
A neutral gray diffusion coating designed to provide a moderate amount of brightness for applications where ambient light is controllable and moderately wide viewing angles are required.
DA-130 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
DA-150
A neutral gray diffusion coating designed to provide a higher amount of brightness and contrast for situations where a low level of ambient light is present or where a projector with moderate output is utilized.
DA-150 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
DA-180
A neutral gray coating offering a higher on-axis gain for situations where a moderate output projector is utilized and where there is a high amount of ambient light present. This coating is well suited for applications where viewing angles are not wide and a higher gain coating is needed for on-axis viewing.
DA-180 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
DA-230
A neutral gray coating with high gain and a moderate viewing angle. The increased gain of this surface makes it suitable for environments where ambient light is uncontrollable and a projector with moderate light output is utilized. Good for situations where the audience is centered within a 50-degree cone from the center of the screen.
DA-230 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
Video Vision
A special coating process generates a screen ideal for video projection under controlled light conditions. This material offers an exceptionally wide field of view so each audience member will observe a uniform, bright, sharp image with no color shift. This screen material is a good choice when producing video images with a projector that has good black levels.
Video Vision can be cleaned with mild soap and water, is flame retardant and mildew resistant.
High Contrast Audio Vision
High Contrast Audio Vision is a perforated vinyl surface that allows for the installation of speakers behind the surface. Designed for high-output projectors, it features a dark gray base for deeper reproductions of black, which improves the perception of contrast. This surface is best in environments with controllable ambient light. Available in any width up to 8' in height.
High Contrast Audio Vision can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Da-Tex
Da-Tex is a vinyl, gray, rear projection surface that works well in high ambient light with a reduced viewing angle. It offers high transmission and low reflective values for optimal viewing. It yields excellent color rendition and image contrast. Seamless in any width up to 16' in height.
Da-Tex can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
High Contrast Cinema Perf
High Contrast Cinema Perf is a perforated vinyl surface that allows for the installation of speakers behind the surface. It features a gray base for deeper reproductions of black, which improves contrast, and an increased reflectivity to enhance brightness where a moderate level of ambient light is present. Ideal for video images. Available in any width up to 8' in height.
High Contrast Cinema Perf can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Matte White
Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Seamless sizes vary by product. Contact a Sales Partner for more information or consult the Specification Sheet.
Matte White can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Perforated Matte White
Perforated Matte White is a surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. The perforated surface allows for the installation of speakers behind the surface.
Perforated Matte White can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
High Contrast Da-Tex
High Contrast Da-Tex® is a vinyl, dark gray, rear projection surface that works well in high ambient light with a moderate viewing angle. The dark gray surface allows for deeper reproductions of black, which improves contrast. Seamless in any width up to 16' in height.
High Contrast Da-Tex can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
3D Virtual Black
3D Virtual Black is designed for passive 3D projection. 3D Virtual Black is a vinyl, rear projection surface that retains 99% of polarized light. Other characteristics include the ability to maintain high extinction values, eliminate ghosting or crosstalk and excellent contrast. 3D Virtual Black provides exceptional image contrast and vivid images even in ambient light. Seamless in any width up to 16' in height.
3D Virtual Black can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
High Contrast Matte White
High Contrast Matte White is a fiberglass surface with a gray base for deeper reproductions of black, which improves contrast. It is for non high-definition projection and environments with moderate ambient light. Available in any width up to 10' in height.
High Contrast Matte White can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Video Spectra 1.5
Video Spectra 1.5 is a fiberglass surface with a reflective coating for lower output non high-definition projectors. It offers increased brightness with a reduced viewing angle. Suitable for uncontrolled ambient light. Available in any width up to 8' in height.
Video Spectra 1.5 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Silver Lite 2.5
Silver Lite 2.5 is a fiberglass multi-purpose front projection surface for non high-definition projection that is optimized for passive linear and circular 3D applications, and is also compatible with 2D projection. The silver surface maintains 99.3% of polarized light. Silver Lite 2.5 eliminates ghosting or crosstalk common with stereoscopic 3D projection. When paired with 2D projection, the gain and high contrast create a perfect surface for high ambient light environments or a low output projector. Available in any width up to 8' in height.
Silver Lite 2.5 can be cleaned with mild soap and water, is flame retardant and mildew resistant.
This surface has achieved GREENGUARD GOLD Certification.
Elite Screens Screen Fabrics
Elite Screens offers a wide selection of projection screen fabrics to suit a variety of projection environments. Most fabrics are washable with mild soap and water. Regardless of your projection environment, Elite Screens offers a screen fabric for your projection solution!
AcousticPro UHD
Gain: 1.0 | Viewing Angle: 180° (90°L/R)
The AcousticPro UHD (ultra-high definition) is a moiré-free self-supported acoustically transparent front projection screen material. The dense synthetic weave is compatible with Ultra-High Definition/4K resolutions while mitigating light penetration for a brighter picture. The AcousticPro UHD design maximizes sound penetration with minimal attenuation without compromising picture quality. The AcousticPro UHD material’s wide diffusion uniformity offers a broad viewing angle with superb picture quality across the entire surface. This provides equal brightness levels on or off axis.
CineWhite
Gain: 1.1 | View Angle: 160° (80° ±LR)
CineWhite (Tension Matte White) has broad light dispersion through diffusion uniformity, black & white contrast and true color rendition making it the most versatile in Elite's tensions screen product lines. This tensioned PVC surface is the best choice for today's high-contrast ratio projectors in commercial or residential presentations. The CineWhite material equals the performance to Elite Screen's MaxWhite product, but improves the experience with the superior surface flatness. Uniform diffusion surface has black-backing to eliminate light penetration and is easily washable with mild soap and water.
AcousticPro 1080P3
Gain: 1.0
The AcousticPro1080P3 is an acoustically transparent front projection material. The angular weave eliminates the moire effect while presenting warm neutral colors for today's high definition 1080P (1920x1080) projectors. The AcousticPro1080P3 allows speaker placement behind while allowing an exceptional acoustically transparent performance.
CineGrey
Gain: 1.0 | View Angle: 160° (80° ±LR)
CineGrey (Tension High Contrast Grey) is designed for low contrast DLP and LCD Home Cinema Projectors. Its superior flatness makes the CineGrey ideal for home theater use. It enhances black levels while minimizing loss in color reproduction. Uniform diffusion surface has black-backing to eliminate light penetration and is easily washable with mild soap and water.
*Manufacturer's Tip: if your projector's contrast ratio is more than 2000:1, we recommend you use CineWhite material for a brighter picture.
CineGrey 5D
Gain: 1.5 | View Angle: 80º (±LR 40º)
The CineGrey 5D is an angular reflective front projection material designed to reject ambient light while maintaining superb picture quality. The CineGrey 5D is the perfect solution for rooms that have little or no control over incidental light. This means that it's an ideal fit for family rooms as well as lecture halls, boardrooms, sports bars, training facilities, and other business environments. In addition, the CineGrey 5D increases projector brightness 1.5 times. This is perfect for low lumens ouput projectors!
The CineGrey 5D is superior to traditional white or gray materials in its ability to maintain a sharp, bright image regardless of ambient light. The angular reflective material incorporates a diffusion layer over a highl reflective surface. This causes direct light from the projector to reflect squarely into the viewer's field of vision while the outer contrast layer enhances image quality while absorbing indirect ambient light.
Max White
Gain: 1.1 | View Angle: 180° (90° ± LR)
MaxWhite screen material is the most versatile screen surface for front projection presentations. This material provides the widest possible viewer angles with perfect diffusion uniformity while giving precise definition, image color reproduction and black & white contrast. Screen surface has black-backing to avoid light penetration and can be cleaned safely with mild soap and water. Woven screen material is a multi-layer, cross-array coated with a matte white reflective compound.
Max White B
Gain: 1.0 | View Angle: 180° (90° ± LR)
Elite’s MaxWhite B material is a matte white material formulated to meet our conventional screens that delivers optimal picture quality. Its neutral 1.0 gain allows for the widest possible viewing angles of 180° (90° Left and Right). The matte surface of the MaxWhite B offers superb diffusion uniformity while delivering radiant image and color reproduction. The screen surface has black-backing to avoid light penetration and can be cleaned safely with mild soap and water.
MaxWhite Fiberglass
Gain: 1.1 | View Angle: 180° (90° ± LR)
MaxWhite Fiberglass (FG) is fiberglass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications. This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast. The screen surface has a black-backing to eliminate light penetration, is mildew resistant and washable with mild soap and water.
* Manufacturer tip: This is an enhanced matte white product for higher end DLP/LCD projectors suitable for commercial and residential presentations.
VersaWhite
Gain: 1.1 | View Angle: 180° (90° ±LR)
VersaWhite Material performs as versatile as a Matte White screen material with the addition of being a dry-erase surface as well. The surface is coated with a scratch-resistant nanotech resin and transparent dry-erase layer for use as a white board while keeping uniform diffusion and enhancing true color rendition.
WraithVeil
Gain 2.2 | Viewing angle: 160° (80° ± LR)
WraithVeil is our rear projection screen material. It has a high gain performance for applications with a high ambient light intrusion. Its 2.2 gain configuration is ideal for events such as clubs, restaurants, trade shows, meeting rooms, and outside evening presentations. Its special surface coating enhances color reproduction and black level contrast with wide uniformity for large audiences. Seamless screen sizes are available in sizes up to 200".
WraithVeil 2
Gain 2.2 | Viewing angle: 160° (80° ± LR)
WraithVeil is our rear projection screen material. It has a high gain performance for applications with a high ambient light intrusion. Its 2.2 gain configuration is ideal for events such as clubs, restaurants, trade shows, meeting rooms, and outside evening presentations. Its special surface coating enhances color reproduction and black level contrast with wide uniformity for large audiences. Seamless screen sizes are available in sizes up to 200".
PowerGain
Gain: 1.8 | View Angle: 120° (60° ±LR)
The PowerGain is perfect for environments where total ambient light control cannot be attained. This is an angular reflective material that provides crisp color reproduction, black & white contrast and resists hot spotting in the presence of ambient light. The textured pearlescent material has black-backing to avoid light penetration and can be safely cleaned with mild soap and water.
*Manufactuerer's tip: Use a high resolution-low output DLP projector for the best results with this material.
AirBright 3D2
Gain: 2.0 | View Angle: 120° (60° ±LR)
Elite’s AirBright 3D2 is a Polarized 3D silver front projection screen material. It is designed to preserve polarization for passive 3D Dual Projector Systems.
It provides superb brightness and contrast for either a regular 2-dimensional or full-immerision 3D imaging. The material supports 2.0 gain reflectivity with strong black levels and a wide 120° viewing angle. These features make the AirBright 3D2 ideal for professional grade passive 3D applications in either a commercial or residential environment.
AcousticPro 1080P2
Gain: 1.0 | View Angle: 160° (80° ±LR)
The AcousticPro1080P2 has a matte white surface with a 1.0 gain that provides excellent color neutrality for superb color reproduction along with wide diffusion uniformity. The angular weave material is designed to allow wall-speaker sound to breathe through the screen while eliminating the visual artifact known as moiré effect. The precision angled mesh of the material allows viewers to enjoy a visually superior presentation with strong color neutrality and artifact-free performance. The material is perfect for use with native 1080p projectors for home cinema and commercial applications.
CineGrey3D
Gain: 1.2 | View Angle: 90° (45° ±LR)
The CineGrey 3D is a reference quality front projection screen material formulated for environments with minimal control over room lighting. It was designed to enhance picture brightness, offer accurate color fidelity, and improve contrast levels. The CineGrey 3D is best for family rooms, educational facilities, conference rooms or any applications in which incident light is a factor. Typical matte white surfaces wash out the images when ambient light cannot be controlled. The CineGrey 3D is a good choice for having a projected image with a balanced color temperature and contrast under such conditions.
It provides flat spectral response for an accurate color balance in dark room environments as well for reference quality applications. The CineGrey 3D is ready for the next-generation of high-performance video.
DynaWhite
Gain: 1.1 | View Angle: 160° (80° ±LR)
Elite’s new DynaWhite Outdoor Movie Screen is a professionally engineered yet cost-effective solution that eliminates all of the problems encountered when trying to project on regular sheet fabrics. It is made of a theater-grade PVC material that is easily fastened into place by use of its corner grommets. They evenly spread out the material tension for a flat projection surface and attach to their surrounding environment such as garage door frames, walls, trees and pole supports. Its 1.1 gain matte white projection surface is textured to avoid hot-spotting while providing color neutrality, and a wide viewing angle that is perfect for social events. Each screen is professionally matted to enhance visual contrast and to absorb the over scan or “bleed” of the projected image. All these features plus its DynaWhite simplicity that allows the average person use it makes the DynaWhite Outdoor Movie Screen a treasured asset for many seasonal events to come.
Spectra White Fiberglass
Gain: 1.1 | View Angle: 180° (90° ±LR)
Elite’s new Spectra White Fiberglass is a self-supporting matte white front projection screen surface with fiberglass backing. The fiberglass backing reduces the amount of curling on the edges that common non-tensioned materials are susceptible to. This feature helps maintain flatness throughout the entire material.
The Spectra White Fiberglass produces outstanding images that are rich in color and contrast in environments with controlled lighting. Offers a broad viewing angle with wide diffusion uniformity for a clear bright image from any angle. The screen surface has a black–backing to eliminate light penetration, is mildew resistant, and washable with mild soap & water.
StarBright 4
Gain: 4.0 | View Angle: 120° (60° ±LR)
The StarBright 4 material has a unique optical coating that enhances picture clarity regardless of an ambient light presence. The Angular-Reflective surface is coated with a transparency dry-erase layer for use as a white board while enhancing true color rendition from its highly reflective qualities. StarBright™ 4 material will enhance image brightness 4x more than the standard matte-white material and is your best dual function for White Board and Front Projection for use in training rooms with ambient light.
StarBright CLR
180° Viewing Angle
StarBright CLR is a ceiling light-rejecting front projection material designed specifically for tabletop-mounted ultra-short-throw projectors. The StarBright CLR features a multi-layer optical lens structure that absorbs off-axis light from above while providing a clear image. This allows the picture to be free from washing out the projected image.
CineWhite UHD
180° Viewing Angle
CineWhite® UHD (Tension Matte White) is a reference-grade 1.15 gain projector screen material that is certified by the world renowned Imaging Science Foundation for its superb color temperature, contrast and black level performance. It has wide diffusion uniformity that allows equal brightness levels over a 180° viewing angle.
DynaBrite
180° Viewing Angle
The DynaBrite is an outdoor screen material that is durable 24/7, rain or shine. It is made for the rigors of outdoor use while maintaining color clarity with a wide viewing angle.
WraithVeil Dual
150° Viewing Angle
The WraithVeil Dual is a 2-directional flexible vinyl projection screen material. It is designed to accommodate either front or rear projection. This versatile material eliminates the need to swap out the projection material to accommodate a front or rear projector array. It offers a 150° wide viewing angle and color balance for a variety of presentations.
CineGrey 3D AT
Gain: 1.2 | Viewing Angle: 90° (45° L/R)
The CineGrey 3D® AT is an ambient and ceiling light rejecting (ALR/CLR®) projection screen material that is perforated to permit acoustic transparency for use with in-wall speakers. It is ISF Certified for accurate color reproduction, contrast and dynamic range to create a bright, crisp, and clear image.
Key Features- ISF Certified for accurate color points, color temperature and dynamic range
- Angular-Reflective front projection material with ambient light rejecting technology
- Contrast enhancement over standard matte white surface
- 4K/8K Ultra HD, Active 3D, and HDR Ready
- Polarized for Passive 3D applications
- Capable of improving brightness, color, and contrast under ambient light conditions
- Mildew resistant, screen surface can be cleaned with a microfiber cloth and water
- Accurate color representation – Flat Spectral Response
CineWhite A8K
Gain: 1.1 | Viewing Angle: 170° (85° L/R)
The CineWhite® A8K is a multi-layer acoustically transparent front projection screen material designed to improve higher resolution projectors 8K and beyond. The CineWhite® A8K has an ultra-fine knit weave that reduces light loss to provide a bright uniform picture in a dark room environment. It includes a bonded black backing to provide better black levels, color reproduction and prevents light leakage.
Key Features- CineWhite® A8K Acoustically Transparent Front Projection Material
- Multi-layer fine knit weave designed for high resolution projectors negates the formation of moiré effect
- Integrated black-backing eliminates light bleed and light loss
- Compatible with ultra/short, and standard throw projectors
- ISF Certified for Accurate Color Reproduction – An Industry Standard for High Fidelity Video Display Systems
CLR 3
Gain: 0.8 | Viewing Angle: 170° (85° L/R)
The CLR® 3 is a ceiling ambient light rejecting front projection material designed specifically for tabletop-mounted ultra-short throw projectors that rejects the washout effects of room lighting. CLR® 3 is specially created using optical microstructures to absorb or “reject” up to 90% of overhead lighting while producing exceptional image brightness, color saturation and contrast for superior picture performance. All while providing a large-screen performance in the close quarters of most residential or even training environments.
Key Features- CLR® 3 (Ceiling Light Rejecting) material absorbs 90% of overhead lighting
- Improves color saturation and black levels under ambient light conditions
- 75x contrast improvement over standard matte white screens in ambient light room environments
- Black backing eliminates light penetration
- Project from a short distance without shadowing the picture
- Micro-serriform optical structure filters out ceiling light for superior picture quality
- Designed for tabletop ultra-short throw projectors
- 4K/8K Ultra HD Ready
- Ambient Light Absorption Rate : 90%
- Projection Type : Front Only (Ultra-short throw)
- Screen Formats Available : Fixed Frame | Electric | Tripod | Folding
- Thickness : 0.47 mm +\- 0.02 mm
- Weight : 500 g\M2
- Maximum Height : 1.5M
- Throw Ratio : < 0.30
- Operating Temperature : -10°-112? (14°-122°F)
DarkStar
Gain: 1.4 | Viewing Angle: 70° (35° L/R)
The DarkStar is a professionally engineered Ambient Light-Rejecting front projection material. It incorporates optical filters that actively reflect image while preventing indirect or ambient light from "washing out" the picture. The 0.3mm thick retro-reflective material has been designed specifically for the home theater environment. With the sublime balance, contrast and viewing angle, the DarkStar brings a hard-hitting performance to both well-lit or dark room.
Key Features- Direct Light Reflection Technology
- Absorbs 95% of ambient light from above and below
- Special neutral black tint maintains color balance and contrast with high gain
- 4K Ultra HD, Active 3D, and HDR Ready
DarkStar 9
Gain: 0.9 | Viewing Angle: 180° (90° L/R)
The DarkStar 9 is EPV Screens newest Ambient Light Rejecting front projection screen. The DarkStar 9 possesses very similar characteristics of our award winning 1.4 gain DarkStar but now offers a wider viewing angle and a very close to unity gain without the compromise of ambient light rejection, contrast enhancement, resolution, and color accuracy.
Min Throw Distance 1.5x image width
Key Features- Black backing eliminates light penetration
- Direct Light Reflection Technology
- Absorbs 95% of ambient light from above and below
- Accurate Color Representation - Flat Spectral Response
- 4K Ultra HD, Active 3D, and HDR Ready
- Certified by the Imaging Science Foundation (ISF)
CineWhite X
The CineWhite® X (Tensioned Matte White) is a 1.2 gain flexible front projection screen material that is certified by the world-renowned Imaging Science Foundation for achieving accurate color reproduction and image fidelity. It has wide diffusion uniformity that allows equal brightness levels over a 180° viewing angle. The versatile properties of this material make it a natural fit with ultra-short, short, and standard (long) throw projectors. The material is also suited for either residential or commercial applications. The CineWhite® X produces outstanding images that are accurate in color and contrast in environments with controlled lighting. The surface is precisely formulated to ensure optical image characteristics for high resolution projectors.
- Provides a clear bright uniform picture regardless of seating position
- Increased reflectivity enhances projector brightness for better HDR performance in a dark room environment
- Black backing eliminates light penetration and picture degradation
- ISF Certified for Accurate Color Reproduction – An industry standard for high-fidelity video display systems
- Compatible with Ultra-short, Short and Standard throw Projectors
- 4K Ultra HD, HDR and Active 3D compatible
CineGrey 4D
Gain: 1.1 | Viewing Angle: 70° (35° L/R)
The CineGrey 4D is a 1.1 gain flexible front projection ceiling ambient light rejecting material for standard throw projectors. It can reject up to 63% of off-axis lighting while providing a bright, contrast rich image in moderate light room environments. The CineGrey 4D produces outstanding images with a balanced color temperature for residential and commercial applications. The ambient light rejecting properties assist in maintaining picture clarity that does not wash out the image like typical matte white surfaces do under ambient light conditions. The surface is precisely formulated to ensure optical image characteristics for high resolution projectors.
Key Features- 1.1 Gain Ceiling Ambient Light Rejecting Material for moderate light room environments
- Multi-layer matrix uses reflective and absorbent micro-particles to eliminate 63% of ambient light
- Angular Reflective CLR°/ALR Front Projection Surface for Standard “long” Throw Projectors
- 63% ambient light rejection
- Enhances color contrast with excellent fidelity and uniformity
- Can be cleaned with mild soap and water and is mildew resistant
- 4K Ultra HD, HDR and Active 3D compatible
- Not compatible with Ultra-short and Short-throw Projectors
Stewart FilmScreen Screen Fabrics
Studio Tek 100
Our most requested residential fabric, StudioTek 100 is a flexible, front projection, matte white screen material formulated to meet the strictest color and white field uniformity standards. This unity gain, reference material is an optimal diffuser and disperses light in a near perfect, hemispherical distribution so that image brightness is virtually unchanged when viewed from any angle. The extremely wide viewing cone necessitates careful management of the reflected light in the viewing environment. StudioTek 100 is a great choice when ambient light can be controlled. Exclusively made by Stewart to deliver enhanced focusing capabilities for detailed on screen content.
StudioTek 130 G4
Recently reformulated StudioTek 130 G4, is a flexible, front projection screen material that now has less sparkle and offers amazing high dynamic range (HDR) of luminosity. This screen material also provides optimized white field uniformity — unmatched by competing gain screens. StudioTek 130 G4 is thirty percent brighter than a matte white screen surface. Featuring a fourth generation, proprietary optical coating, this screen material allows for crisp, sharp focusing of content as well as superb color and outstanding, white field uniformity. Certified by THX, StudioTek 130 G4 is the reference standard projection material within the AV industry.
FireHawk G5
Fifth generation FireHawk is a flexible, front projection screen surface engineered for use with today’s high-powered projection technology for applications involving the presence of ambient light. As always, ambient light is the enemy of two-piece projection. Stewart Filmscreen is in the business of image fidelity and FireHawk G5 is designed to provide the best possible trade-off between image fidelity and ambient light resistance. With increased image contrast and even better, off-axis viewing, FireHawk G5 delivers image exactness along with superior high contrast levels that have long been synonymous with Stewart Filmscreen. This is truly a great screen fabric.
GrayMatte 70
A lower gain, flexible, front projection screen material formulated for use in edge blending applications. This fabric also performs well with ultra short throw projectors. GrayMatte 70 is a neutral density, gray screen surface that can also dampen cross reflection in deeply curved or circular projection installations. This fabric is an excellent vehicle for neutral attenuation of overly lit displays employing large, high resolution projectors with small projected surface areas. GrayMatte 70 offers an extremely wide viewing cone and is a frequent choice when ambient light is not completely controlled. Custom gains are available.
