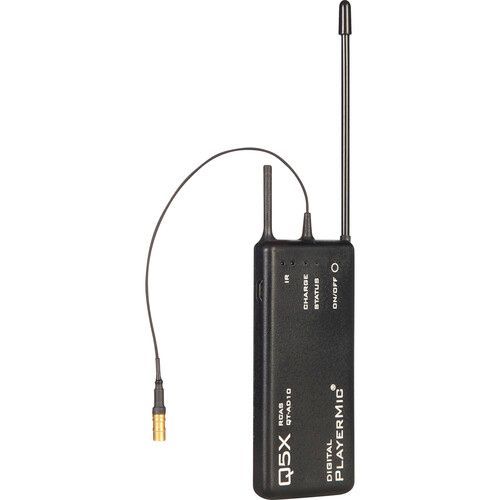

Designed for athletes and active performers, the Shure Q5X QT-AD10P PlayerMic is a thin and flexible digital wireless bodypack transmitter compatible with Axient Digital series receivers. The transmitter features a rugged and bendable rubber casing engineered to be safe and extremely comfortable to wear, allowing sportspeople, performers, and entertainers to forget the transmitter is there at all. The PlayerMic offers a LEMO 1-pin connector ready to accommodate the compatible lavalier of your choice (available separately) and is well suited to a wide variety of uses, including location shooting, reality TV, entertainment events, and sports broadcasting.
Setup is handled remotely via the QX5's Remote Control Audio System (RCAS) using the handheld MicCommander module (available separately). The transmitter provides up to 8 hours of operation on its built-in rechargeable battery and features a selectable 2/10/20mW RF output power.
Frequency Band: G56 470-636 MHZ
At a Glance
For use with Axient Digital wireless receivers
Flexible and concealable, thin, polymer, water-resistant case that is easily sanitized
Encryption-enabled, secure transmission
Selectable 2, 10, and 20mW RF output power
Internal, lithium-ion rechargeable battery provides 8 hours of operating time at 10mW setting
Single-pin LEMO connector for compatible microphone (available separately)
RCAS MicCommander provides essential remote handheld operation, management, and monitoring (available separately) Ready for Action
PlayerMic was developed by Q5X for the NBA as the world’s first flexible rubber bodypack and is equally at home in all sports and entertainment arenas.
Hear and feel the action without anyone ever seeing how you captured it. PlayerMic’s unique one-piece, thin, rubber design protects players from injury should they fall on it or take a direct hit and is extraordinarily concealable.
Combine it with Axient Digital wireless receivers to get superior digital transmission with advanced encryption and spectrum efficiency.
Remote Control Audio System
The QT-AD10P PlayerMic utilizes RCAS (Remote Control Audio System), a revolutionary way to remotely control transmitter settings from a central computer or handheld remote control.
The remote functions allow technicians to control on/off, monitor status, and battery level and make on-the-fly adjustments of frequency, mic offset, mic mute, RF power level, and grouping—all wirelessly.
1-Pin LEMO Microphone Available Separately
The PlayerMic transmitter features Q5X's proprietary 1-pin LEMO connector, and compatible microphones are available directly from Q5X. Alternatively, you can send your microphone to Q5X and have it retrofitted with a 1-pin LEMO connector.
The PlayerMic is compatible with a wide range of lavalier microphones including the following models:
Countryman B6 (low sensitivity)
Shure DuraPlex and Twin Plex TL47/TL48
Voice Technologies VT500, VT500 WA, or VT500X
DPA 4060/61 and 6060/61
Point Source lavaliers
