Tripp Lite 4-Port HDMI Over Cat5 Extender/Splitter - B126-004

Tripp Lite 4-Port HDMI Over Cat5 Extender/Splitter - B126-004

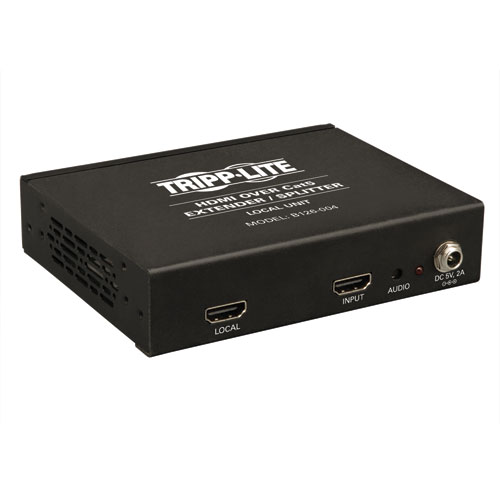

Tripp Lite's B126-004 splits a HDMI signal into 5 (1 Local, 4 Remote), and allows you to locate monitors over long distances using a single Cat5e/6 cable. Connect up to 13 monitors (1 Local, 12 Remote) by daisychaining up to three units together. When used with an active remote unit (B126-1A0 or B126-1A0-WP), a 1080i (60Hz) signal can be extended up to 200 ft.; or, a 1080p (60Hz) signal can be extended up to 150 ft.. When used with a passive remote unit (B126-1P0 or B126-1P0-WP), a 1080i (60Hz) signal can be extended up to 100 ft.; or, a 1080p (60Hz) signal can be extended up to 50 ft.. 24Awg, Solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required to reach max distance and resolution. Supports both stereo audio and 7.1 channel surround sound audio, as well as HDCP protected content. Mounting hardware is included that allows the B126-004 to be rackmounted, wallmounted or pole mounted. Also, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.

Key Features

• Splits a single HDMI signal into 5 (1 Local, 4 Remote)

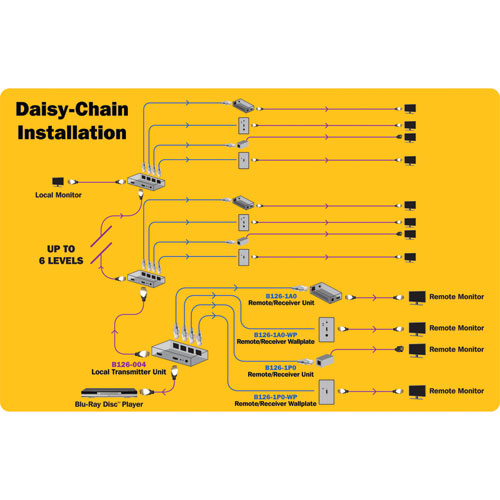

• Connect up to 13 monitors (1 Local, 12 Remote) by daisychaining up to three units together

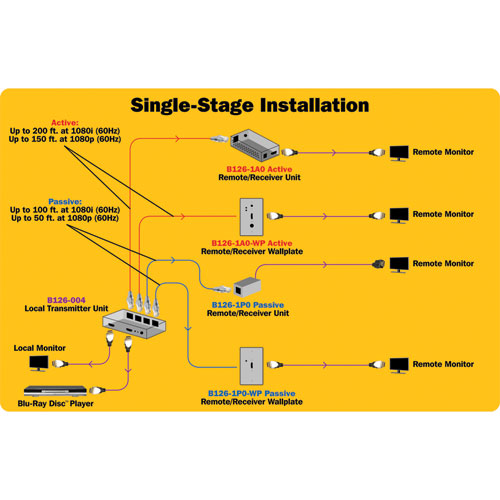

• When used with an active remote unit (B126-1A0 or B126-1A0-WP), a 1080i (60Hz) signal can be extended up to 200 ft.; or, a 1080p (60Hz) signal can be extended up to 150 ft.
• When used with a passive remote unit (B126-1P0 or B126-1P0-WP), a 1080i (60Hz) signal can be extended up to 100 ft.; or, a 1080p (60Hz) signal can be extended up to 50 ft.
• 24Awg, Solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required to reach max distance and resolution
• HDCP compatible
• Compatible with both stereo audio and 7.1 channel surround sound audio
• Mounting hardware is included that allows the B126-004 to be rackmounted, wallmounted or pole mounted
• Up to three B126-004 local units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket
• Compatible with all operating systems
• Plug and play; No drivers required
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• 1 year limited warranty

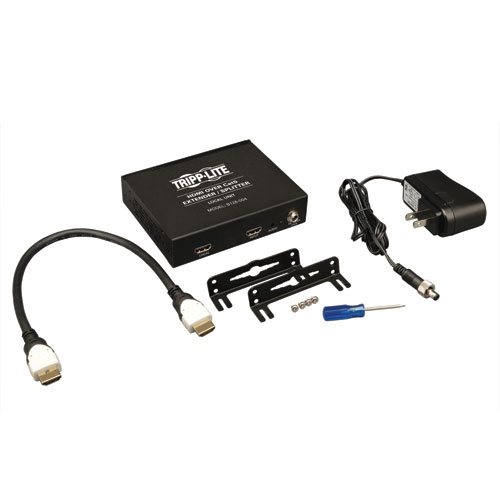

Package Includes

• B126-004 HDMI Over Cat5 Extender/Splitter, 4-Port
• 1 ft. HDMI daisychain cable
• Mounting hardware
• External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner Manual

PHYSICAL Optional mounting accessory notes Up to three B126-004 local units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket Unit Dimensions (HWD/in) 1.125 x 5 x 4 Mounting accessories included Yes Color Black CONNECTIONS Connector A (X4) RJ45 (FEMALE) (X4) RJ45 (FEMALE) Connector B (x2) HDMI (Female) (X2) HDMI (FEMALE) WARRANTY Product Warranty Period (U.S., Canada & Puerto Rico) 1-year limited warranty
