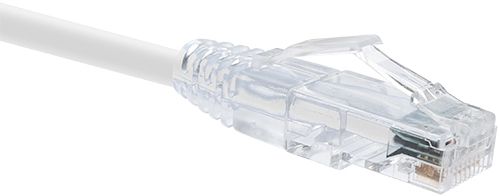

Unirise 25' White Cat 6 Cable - 10258

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Unirise 25' White Cat 6 Cable - 10258

Unirise's ClearFit line of Category 5e cables are low profile, and offer a unique snagless and easy to release design that makes crowded patch panel installations a snap. ClearFit is tested to exceed 350MHz and easily handles bandwidth intensive applications. Plugs are staggered and plated with 50 microns of gold per contact. In addition, they are BAA compliant and individually bagged, tested and guaranteed for a lifetime.

The Difference is Clear

ClearFit patch cables available in Cat 6 and Cat 5e
Low profile connector for easy fit in panels & switches
Unique easy-release, snagless retainer clip design
Ultra-flexible NoKink cable for smooth installation
TAA/BAA compliant
Individually tested, packed and guaranteed a lifetime
11 vibrant color options

Specifications

Length	25'
Color	White
Conductor Construction	Bare Stranded Copper
Conductor Size	24AWG x 4 Pair
Insulation	PE
Separator	PE Cross
Jacket	70P PVC
Outer Diameter	6.0 +/-0.2mm
Dielectric Strength	AC-500V/1 min no breakdown
DC Resistance Unbalance	5% max
Pair to Ground Capacitance Unbalance	330pF/100m
Nominal Velocity of Propagation (NVP)	68+/-2%
Mean Characteristic Impedance	100+/-15 ohm @ 4-1000MHz 100+/-22 ohm @ 100-250MHz
Nominal Velocity of Propagation (NVP)	68+/-2%
Mean Characteristic Impedance	100+/-15 ohm @ 4-1000MHz 100+/-22 ohm @ 100-250MHz
Propegation Delay Skew	>/= 45ns/100m max
Conductor Resistance Working Temperature	<93.8O/km/20 degrees C max
Working Temperature	-20 degrees Celcius ~ 75 degrees Celcius
Propegation Delay	>/= 537.0ns/100m @ 100MHz
