ZoomSHOT 20 SE QMini System White - 999-69300-400W

ZoomSHOT 20 SE QMini System White - 999-69300-400W

Part Number: 999-69300-400W
Our Price: $2,857.00
Availability: Usually ships the same business day
-
+

Description

A low-cost point-of-view camera with HD image quality.

    Key Features:
  • 20x powered zoom with 63° horizontal field of view
  • Up to 1080p/60 HD image quality
  • USB 2.0 streaming output
  • Power/Video/Control on two Cat-5’s up to 150 ft (45.72 m)
  • Manual Pan/Tilt with EZ Set tensioning system


The ZoomSHOT 20 SE is a cost-effective, versatile, high-definition point-of-view camera well-suited for small, medium, and large rooms. It is designed to support a wide range of applications, including houses of worship, pro A/V system integration, live events, IMAG systems, UCC applications, videoconferencing, distance learning classrooms, and lecture capture. The camera captures with a full HD 1/2.8” Sony 1080p image sensor, 20x optical zoom, and 63° horizontal field of view. It also features a manual pan/tilt, an EZ Set tensioning system, and a presenter-friendly IR remote control. The ZoomSHOT 20 SE QMini System is easy to install and use. The Quick-Connect USB Mini (Qmini) Interface outputs up to 720p/30. The ZoomSHOT 20 SE is a reliable and affordable solution for your video capture needs. Record a lecture, conduct a video conference, or capture live events with outstanding performance and quality. Versatile features, outputs, and ease of use, make this system an excellent choice. Additional ZoomSHOT 20 SE systems are available. For other outputs, see ZoomSHOT 20 SE QUSB System or the ZoomSHOT 20 SE AVBMP for use with the AV Bridge MATRIX PRO (sold separately).

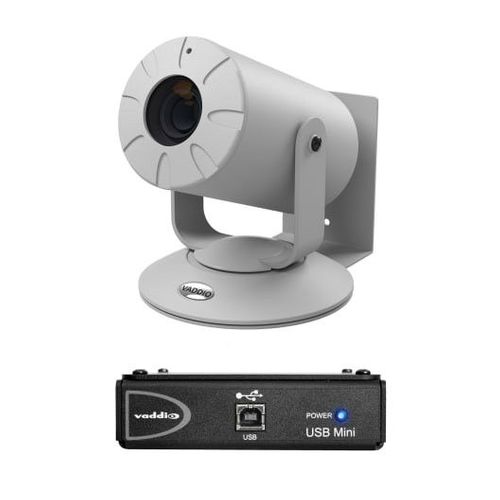

    This Package Includes:
  • ZoomSHOT 20 SE camera (black or white)
  • Thin Profile Wall Mount (black or white) with mounting hardware
  • Vaddio IR Shot Commander remote with 2x AAA batteries
  • Quick-Connect USB Mini Interface (QMini)
  • 24V power supply with AC cord set(s)

Specifications

Dimensions & Measurements DepthCamera: 5.8 in (14.73 cm) QMini: 3.58 in (9.1 cm)
HeightCamera: 7 in (17.78 cm) QMini: 1.24 in (3.15 cm)
Max Distance Support150 ft (45.7 m)
Product WeightCamera: 3.5 lbs (1.59 kg) QMini: 1.12 lbs (0.51 kg)
Operating Temperature32° to 104°F (0° to 40°C)
WidthCamera: 5.5 in (14 cm) QMini: 4.46 in (11.3 cm)
Characteristics & Features3rd Party ControlRS232
Camera TypeFixed
ColorWhite
Compatible WithVaddio
Control Method
  • IR Remote
  • RS232
  • Estimated Room Size
  • Large Room
  • Medium Room
  • Field of View63 Degrees Wide End
    Field of View WideLess than 70
    Focus System
  • Auto
  • Manual
  • Gain
  • Auto
  • Manual
  • Image Sensor Type1/2.8 Exmor CMOS
    ManufacturerVaddio
    Input Ports
  • EZ Power Video
  • RS232
  • Minimum Illumination0.3 Lux (F1.6)
    OneLINK CompatibilityNo
    Output PortsUSB 2.0
    Pan and Tilt Range
  • Tilt: +30· to -30°
  • Unlimited Pan
  • Pan and Tilt SpeedManual
    Pixels2.14 Megapixel (2.38 Total MP)
    Power CordUS Cord
    Power Supply
  • 2.08A
  • 24VDC
  • Power Type
  • EZ Power
  • Local Power
  • Preset Positions16
    PTZ MotorsNo Motors Manual
    Quick-Connect CompatibilityQmini
    Signal TypeUSB 2.0
    Solution TypeCamera with Extension
    Top Resolution720p 30
    Tri-Sync MotionNo
    White Balance
  • Auto
  • Manual
  • Zoom20x
    Zoom RangeGreater than 19X
    Certifications & WarrantiesCertifications
  • CE
  • FCC
  • TAA
  • Warranty3 years
