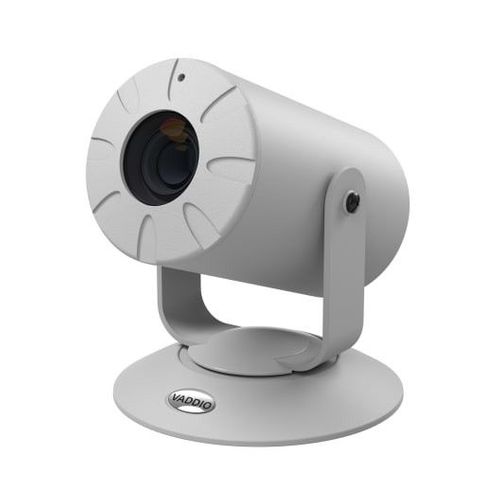

ZoomSHOT 20 SE AVBMP White - 999-69300-500W

ZoomSHOT 20 SE AVBMP White - 999-69300-500W

Part Number: 999-69300-500W
Our Price: $2,207.00
Availability: Usually ships the same business day
-
+

Description

A low-cost point-of-view camera with HD image quality.

    Key Features:
  • 20x powered zoom with 63° horizontal field of view
  • Up to 1080p/60 HD image quality
  • Power/Video/Control on two Cat-5’s up to 150 ft (45.72 m)
  • Manual Pan/Tilt with EZ Set tensioning system

The ZoomSHOT 20 SE is a cost-effective, versatile, high-definition point-of-view camera well-suited for small, medium, and large rooms. It is designed to support a wide range of applications, including houses of worship, pro A/V system integration, live events, IMAG systems, UCC applications, videoconferencing, distance learning classrooms, and lecture capture. The camera captures with a full HD 1/2.8” Sony 1080p image sensor, 20x optical zoom, and 63° horizontal field of view. It also features a manual pan/tilt, an EZ Set tensioning system, and a presenter-friendly IR remote control. The ZoomSHOT 20 SE AVBMP is easy to install and use. It can be connected directly to the EZ-POWER VIDEO and RS-232 jacks of the AV Bridge MATRIX PRO using category cables, providing HD video and serial control to the MATRIX PRO video switcher. The ZoomSHOT 20 SE is a reliable and affordable solution for your video capture needs. Record a lecture, conduct a video conference, or capture live events with outstanding performance and quality. Versatile features, outputs, and ease of use, make this system an excellent choice. Additional ZoomSHOT 20 SE systems are available. For other outputs, see ZoomSHOT 20 SE QUSB System or ZoomSHOT 20 SE QMini System.

**ZoomSHOT 20 SE is used only with the AV Bridge MATRIX PRO (sold separately) or a Quick-Connect system. It cannot be used as a stand-alone camera.**

    This Package Includes:
  • ZoomSHOT 20 SE camera (black or white)
  • Thin Profile Wall Mount (black or white) with mounting hardware
  • Vaddio IR Shot Commander remote with 2x AAA batteries

Specifications

Dimensions & Measurements Depth5.8"
Height7"
Max Distance Support150 ft (45.7 m)
Product Weight3.5 Lb
Operating Temperature32° to 104°F (0° to 40°C)
Width5.5"
Characteristics & Features3rd Party ControlRS232
Camera TypeFixed
ColorWhite
Compatible WithVaddio
Control Method
  • IR Remote
  • RS232
  • Estimated Room Size
  • Large Room
  • Medium Room
  • Field of View63 Degrees Wide End
    Field of View WideLess than 70
    Focus System
  • Auto
  • Manual
  • Gain
  • Auto
  • Manual
  • Image Sensor Type1/2.8 Exmor CMOS
    ManufacturerVaddio
    Input Ports
  • EZ Power Video
  • RS232
  • Minimum Illumination0.3 Lux (F1.6)
    OneLINK CompatibilityNo
    Output PortsHSDS
    Pan and Tilt Range
  • Tilt: +30· to -30°
  • Unlimited Pan
  • Pan and Tilt SpeedManual
    Pixels2.14 Megapixel (2.38 Total MP)
    Power Type
  • EZ Power
  • Preset Positions16
    PTZ MotorsNo Motors Manual
    Quick-Connect Compatibility
  • Qmini
  • QUSB
  • Signal TypeRS 232
    Solution TypeCamera Only
    Top Resolution1080p 60
    Tri-Sync MotionNo
    White Balance
  • Auto
  • Manual
  • Zoom20x
    Zoom RangeGreater than 19X
    Certifications & WarrantiesCertifications
  • CE
  • FCC
  • TAA
  • Warranty3 years
