Vivitek DU9900Z-BK Laser Projector

Description

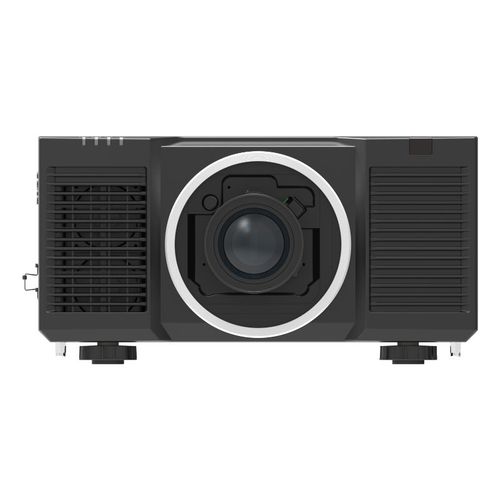

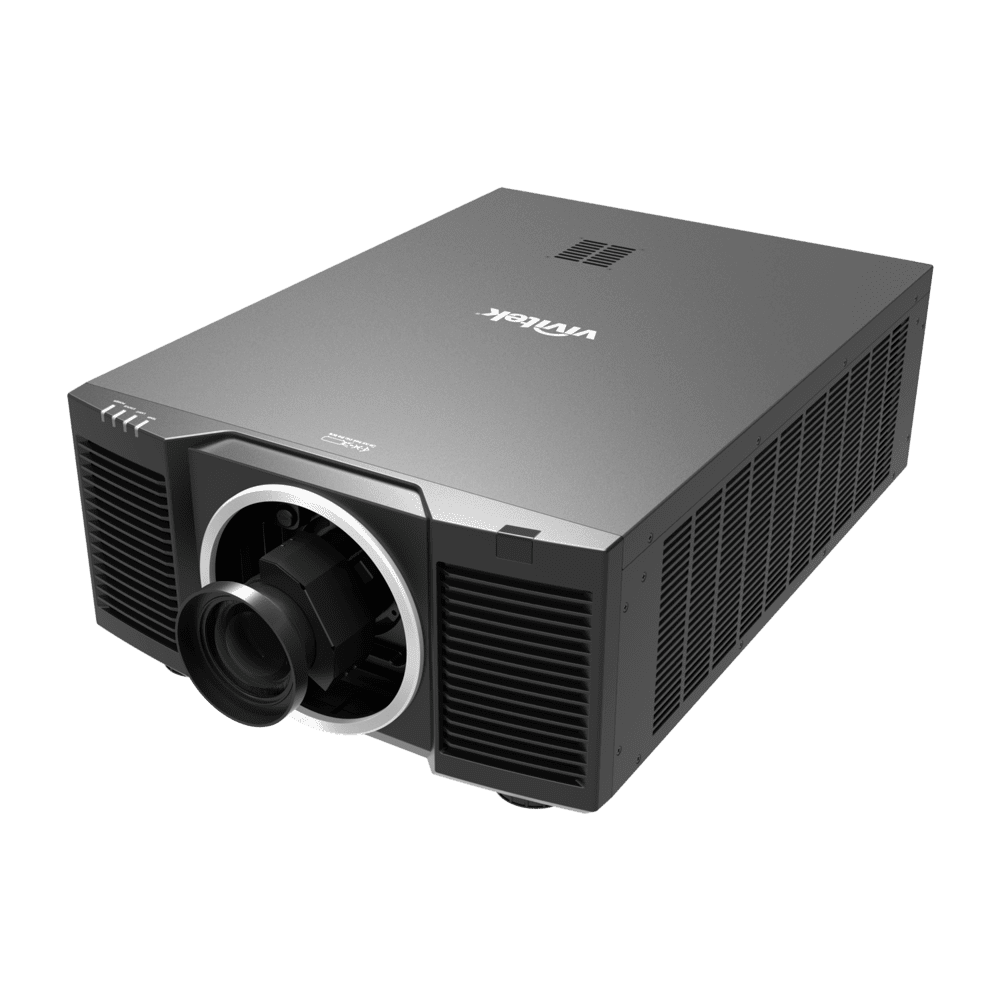

Vivitek DU9900Z-BK Laser Projector

Ultra High Bright SSL Laser projector delivering 22,000 lumens, rich connectivity, edge-blending, and very low maintenance operating time

Key Features

Bright 22,000 ANSI lumens with a native WUXGA (1920 x 1200)
resolution for impeccable colors and outstanding details
DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant, colorful images
Solid-state, laser-phosphor light source for reliable projection and performance
Environmentally friendly lamp-less design that is mercury-free and energy efficient
Almost maintenance-free with up to 20,000 hours of operating time
Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
Laser light source produces rich colors for an incredible cinematic experience
Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
Built-in hardware edge blending and warping functionality
Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
Picture-in-Picture (PIP) for simultaneous image projection from two active sources
Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™
HDBaseT™ interface with support for distribution of digital video content over standard CAT5e/6 LAN cable
Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
360° operation and projection design for set up in all angles
Instantaneous power-on & off, so no need for system pre-heating and postcooling
Airtight sealed engine and filter-less design for improved performance against dust and fibers
Frame sequential and dual channel 3D supported
Complete range of motorized interchangeable lens in sizes from 0.9 to 7:1 (optional)
Optimized system layout with high efficiency cooling system
Heavy duty steel chassis for extra strength and integrity
24/7 continuous operation with no downtime
Network ready for integration and system administration via RJ45

Specifications

Detailed Specifications
Resolution:	WUXGA (1920 x 1200)
Display Device:	0.96" DLP x 1
Brightness:	22,000 ANSI Lumens
Contrast Ratio:	10000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to WUXGA (1920 x 1200)
Aspect Ratio:	16:10
Number of Colors:	16 Million
Lamp:	Laser Phosphor
Typical Lamp Life:	20,000 hours
Lens:	f/2.2 - f/2.53, Ultra Wide Zoom
Throw Ratio:	0.90:1-1.20:1
Image Size:	40” – 500”
Throw Distance:	6" - 32'
Keystone Correction:	Vertical ±40°, Horizontal ±60°
Projection Methods:	Front/Rear; Tabletop/Ceiling Mount

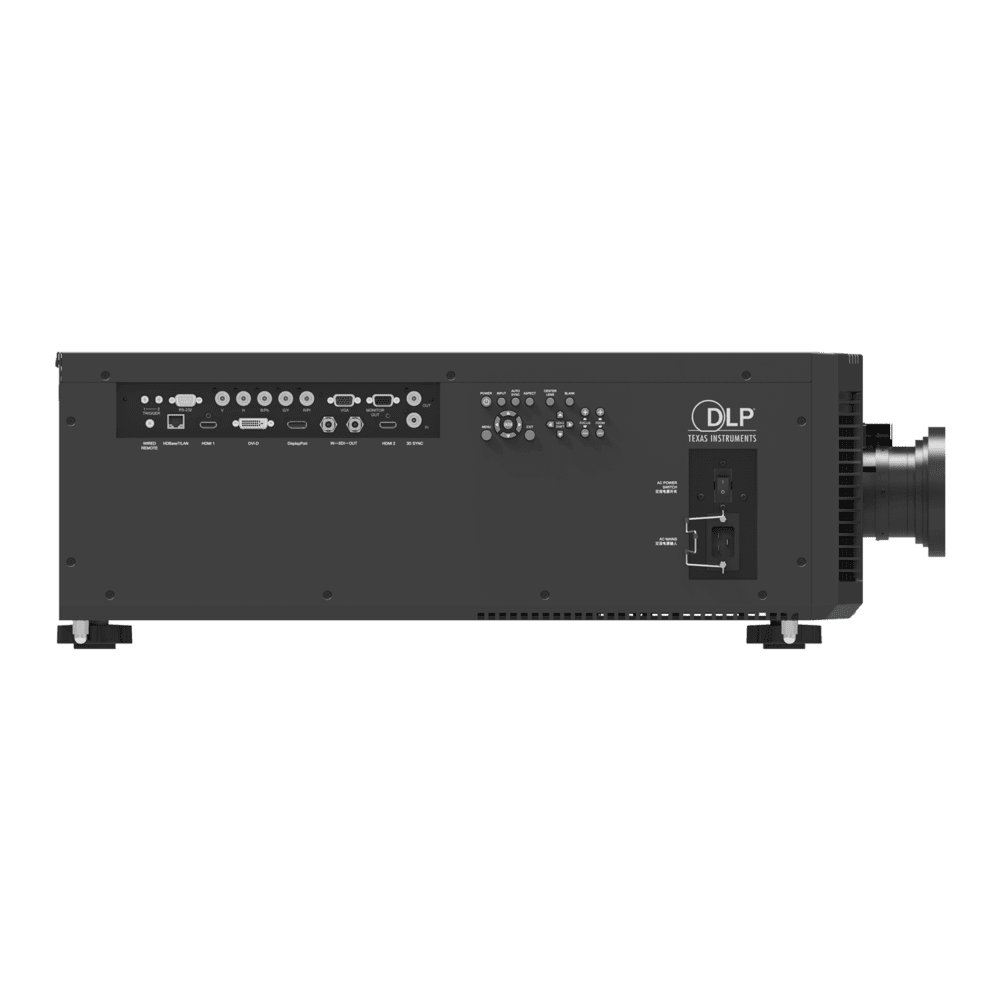

Inputs:	HDMI x 2 VGA x 1 DVI-D x 1 3D Sync 3.5mm Jack RJ-45 RS-232 5 BNC x 1 3G-SDI x 1
Outputs:	VGA x 1 3D Sync RS-232
Speaker:	N/A
Audible Noise:	45dB / 39dB (Eco Mode)
Weight:	115 lbs.
Dimensions:	26.8” x 20.8” x 9.7”
Accessories:	AC Power Cord, Remote Control, Lens Cap, Anti-Theft Lens Screws, Documentation Kit
Remote Control:	Remote Control Included
Mfg Warranty:	5 Years
Product Data Sheet:	Product Data Sheet
