Description

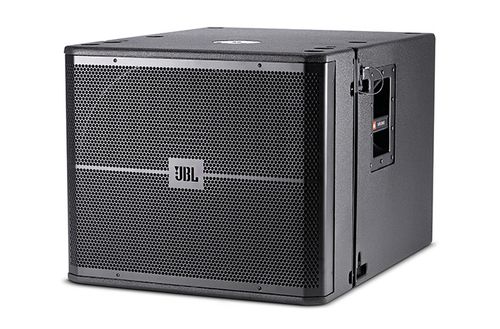

JBL VRX SERIES S/M, Vrx918Sp - VRX918SP
18 in. High Power Powered Flying Subwoofer
18 in. High Power Powered Flying Subwoofer
The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
- Built-in JBL Drivepack DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
- 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive woofer for high-power capacity and light weight.
- Integral rigging hardware for simple connection of enclosures and optional array frame.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
- Large port area for reduced distortion.
Specifications
Power Rating | 1500 Watts Peak LF: Dual-Bridged Technology, Class D |
Frequency Range | 31 Hz - 220 Hz |
Dimensions(H x W x D) | 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in) |
Frequency Response | 34 Hz - 220 Hz |
Maximum Peak Output | 126 dB SPL at 1m |
Bandpass Nominal Impedance | LF: 2 x 2 ohms |
LF Driver | 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive woofer with neodymium-magnet |
Audio Input Connector | XLR with loop through |
Signal Processing | DSP based, resident in Input Module |
System Management | DSP based limiters for mechanical and thermal protection |
AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60Hz |
AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) |
AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) |
AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
Enclosure | 18 mm birch plywood. |
Suspension / Mounting | Optional VRX-AF line-array frame kit or 10 mm forged eyebolts |
Finish | Black DuraFlex finish |
AC Current Requirements | 6A per system at 120V, 3A per system at 240V |
Net Weight | 38.5 kg (85 lb) |
Optional Accessories | VRX-AF array frame SRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit |
