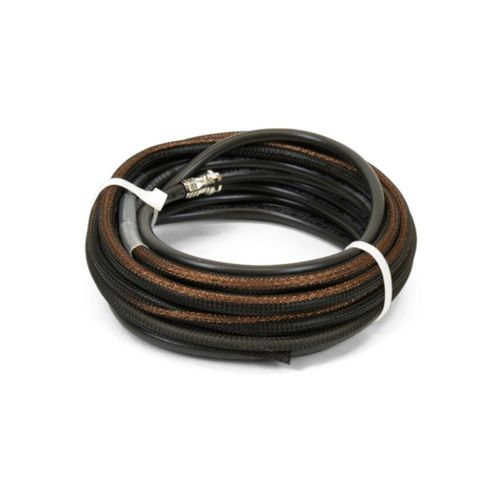

Williams AV Remote Coaxial Antenna - ANT 005

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

ANT 005

Remote Coaxial Antenna, 72-76 MHz FM, 22ft overall cable length with last 80inches being active antenna. Use with large-area FM transmitters. Works with optional 50? antenna extension (WCA 008 50). Shipping: 9? x 5? x 7?, 1.0 lbs.

Specifications

Use with	PPA T45,PPA T45NET, PPA T27 Transmitters
Connector type	F-connector
Cable type	RG 59 coax
Nominal Impedance	75 Ohm
Total Cable Length	22 ft
Active Antenna Length	80 in

Reviews

Write a Review

Downloads

Product Data Sheet
