Digi-Loop Medium Area, Single Channel Hearing Loop Dante Amplifier - DL107-SYS-D

The DL107 NET D hearing loop amplifier maximizes modern amplifier technology. Its network-control capability provides seamless, remote system set-up, operation, and monitoring of the induction loop system via a laptop or tablet. DSP audio processing offers flexible, powerful software control of mixing, equalization, compression, and more. Powerful Class D pulse-width amplifier maximizes the efficiency of the unit. The Dante input provides integration with existing Dante devices and remote network management. This assistive listening system's design offers a single 9.5 A rms loop output for perimeter loop or single array configuration. A 70-100 V input connects to a distributed speaker/paging system, ensuring announcements are heard by hearing aid users. Meet IEC 60118-4 standards on system performance when integrated into a correctly designed and installed system. The DL107 NET D is also tested to IEC Specifications 62489-1 Benchmark Standards

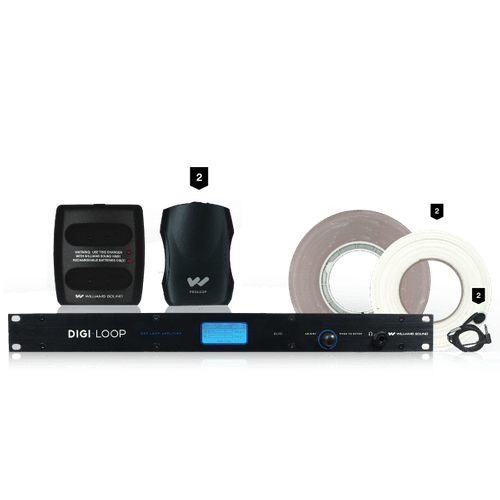

System Includes

✔ (1) PLA DL107 NET D - Medium Area, Single Channel Loop Amplifier

✔ (1) WLC 004 - Line Cord (US)

✔ (1) IDP 009 - ADA Wall Plaque (T-Coil)

Key Features
• Network control - allows control and calibration of unit remotely with application software
• High continuous current 9.5 Arms (13.4 Apk) per output continuous
• LCD Screen with VU metering, easy one-button menu control
• DSP Audio Processing
• Dante Input ("D" models)
• USB for firmware updates
• Input mixing, parametric equalization, compression, metal compensation, high and low-pass filters, AGC and audio delay
• Power-save mode
• Adjustable output delay for multiple amps in large venues
• Fault warning and active protection against shorted or open circuits and overheating
• Loop fault relay output
• XLR and 3-position terminal block input configurable as microphone input or line-input, balanced or unbalanced.
• Standard 1 RU, 19" rackmount
• Magnetic signal couples directly to devices equipped with telecoils (T-coils) such as hearing aids, cochlear implants, or optional loop receivers.
• DL207 suitable for phased-array or dual-loop systems; DL107 suitable for perimeter loop or single array.
• Phased-array mode automatically produces 90^o phase shift in slave loop output
• Meets IEC 60118-4 system performance requirements when integrated into a correctly designed and installed system.
• Meets IEC Specification 60118-4 (when designed and commissioned properly)
• Tested to IEC Specifications 62489-1 Benchmark Standards
