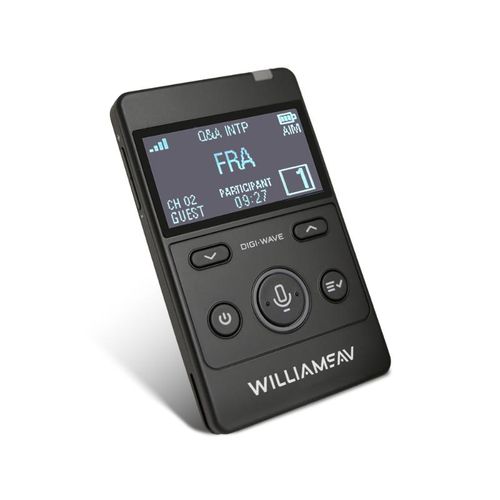

Williams AV Digi-Wave AIM (Advanced Interpretation Module) Transceiver - DLT 400-AIM

Description

Digi-Wave AIM (Advanced Interpretation Module) Transceiver

The Digi-Wave 400 Advanced Interpretation Module (AIM) is a portable, digital communication system specially designed for interpretation. With Digi-Wave AIM, you can enjoy all the features of Digi-Wave 400 plus; effortless Q&A mode for switching languages during interpreted discussions, customized channel naming, a control mode for offline programming, subgroup division, and an industry-leading 24 available channels.

The Digi-Wave AIM Transceiver is an excellent tool for interpretation during training, presentations, and tours. It supports bilingual two-way guided tours, language interpretation with Q&A, and bilingual meetings. With Digi-Wave AIM, you can enjoy all the features of Digi-Wave 400 plus; effortless Q&A mode for switching languages during interpreted discussions, customized channel naming, a control mode for offline programming, subgroup division, and an industry-leading 24 available channels.

Q&A Mode – Industry unique feature enables easy Questions and Answers switching between two languages. With this device, every participant can listen and speak, enabling seamless discussions with two open microphones per language at a time. The industry-unique feature of two-way communication between the interpreter and the audience also allows audience members to ask questions back to the interpreter.
Custom Channel Naming – Customize room names or choose from 100 ISO language codes
24 Channels – Industry-leading channel count with up to 24 channels available for interpretation
Control Function – The control function allows administrators to program channel names and subgroups offline and update all devices in the system when convenient for the administrator.
Subgroup Division– The subgroups function allows administrators to program custom channel names and subgroups offline, making it easy for guests to identify the language they are hearing or the subgroup they belong to. Great for divisible rooms or changing group needs.

To upgrade your current DLT 400 to include the Advanced Interpretation Features, please contact TechBlue.

System Includes

The DLT 400-AIM has an internal rechargeable battery and includes the charging pack DW ACC PAC4.

Key Features

Q&A Mode – Industry unique feature enables easy Questions and Answers switching between two languages
Custom Channel Naming – Customize room names or choose from 100 ISO language codes
24 Channels – Industry-leading channel count with up to 24 channels available for interpretation
Control Function – Program channel naming and subgroups offline
Subgroup Division– Divide interpretation groups into subsets of channels. Great for divisible rooms or changing group needs.

Specifications

Dimensions	2.60”W x 4.22”H x 0.50”D (66 mm x 107.3 mm x 12.6 mm)
Weight	3.3 oz (94 g) including battery
Color	Black/Silver (Front/Back)
Case Material	Black ABS plastic
Battery type	Lithium Polymer with smart charge built into transceiver; 1800 mAH
Battery life	Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
Power Save	Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
Charge time	5 hrs. approx.
System Voltages	OLED 14VDC; RF 5VDC; Logic 3.3 VDC
Operating frequencies	2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
Audio Frequency response (-3dB Level)	Intercom Mode, Court Mode, INTP24 Mode, Q&A INTP: 100 – 7,200 Hz Other Modes: 100 – 11,500 Hz
SNR	73 dB (A-weighted, default Rx volume with mic input )
THD	0.1 % (Default Volume, 1kHz)
Microphone input	Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
Line Input	USB-C, Adjustable level
Headphone Output	3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
Audio Output	Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
Line: USB-C, Adjustable level
Range	Up to 900 ft (274 m) (depending upon environmental conditions)
Modulation	FSK
RF Output	19 dBm Typical
Security	87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
Side tone	-6 dB below volume, tone variation (Off, Low and High settings available)
Indicators	OLED
LEDs	Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
Charging Connectors	USB-C; Two contacts for use with CHG 412
Compatible Receiver	DLR 400 RCH (with firmware 1.3.0 or greater)
Operating Temperature Range	14º to 113ºF (-10º to 45ºC)
Approvals	FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
Warranty	2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details.
