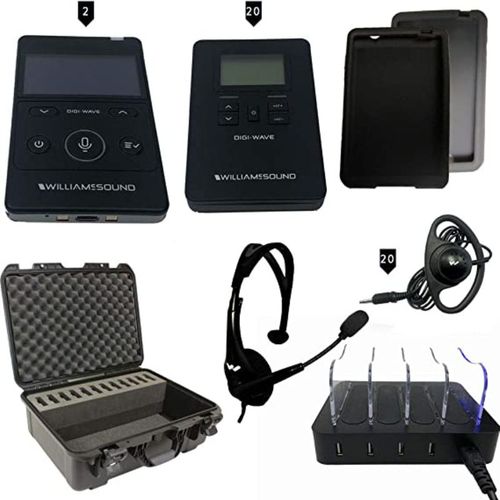

Williams AV Interpretation System - DWS INT 3 400 ALK
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Digi-Wave 400 Interpretation System
Digi-Wave 400 Series Interpretation System for two presenters and 20 listeners.
Specifications
CHG 404
DLR 400 ALK
DLT 400
EAR 022
| Dimensions: | 6”L x 5”W x 3”H (15.6 cm x 12.7 cm x 7.85 cm |
| Weight: | 0.70 lbs (0.3 kg) |
| Color: | Black and clear plastic |
| Power Input: | AC 100-220V 50/60Hz 0.5A (max) |
| Power Output: | DC 5.0V 1.1A per bay (22W max) |
| Unit Capacity: | 4 Units |
| Indicators: | Individual Charging Indicators: Blue LEDs light up dividing clear panels |
| Compatible Units: | CHG 404 WF: WF R1 CHG 404 DW: DLT 400, DLR 400 RCH(Appropriate USB cables can be used with any CHG 404. See Note.) |
| Warranty: | 1 year (90 day warranty on cables and power supply) |
| Approvals: | WEEE, RoHS, CE, FCC, IC |
| Notes: | Accepts USB type A plugs, with a USB-C or with a micro-B plug that can connect to the device to be charged. |
| Dimensions: | 2.36" W x 3.54" H x 0.63" D (60 mm x 90 mm x 16 mm) |
| Weight: | 1.7 oz. (47 g) without batteries. |
| Frequency Band: | 2.4 GHz (ISM band) |
| Modulation: | FSK |
| Case Material: | Black ABS Plastic |
| Battery Type: | 2 x AAA Alkaline Batteries |
| Battery Life: | Alkaline Disposable (BAT 010-2): Up to 30 hrs |
| Power Save: | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Audio Frequency Response: (-3dB level) | Intercom Mode: 100 – 7,300 Hz Interpretation and other modes: 100-11,200 Hz |
| SNR: | 74 dB (A-weighted) |
| THD: | 0.1% (typical) |
| Antenna: | Internal |
| Range: | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Headphone Audio Output: | 3.5 mm TRRS jack with mono output for headphones, earphones, or neckloop 27 mW maximum @32 ohms |
| Display: | LCD shows status: Battery Level, RSSI, Group/Channel # |
| Temp. Range: | 14° – 113°F (-10° to 45°C) |
| Compatible Units | DLT 400, DLT 300 |
| Approvals: | FCC, Industry Canada, RoHS 3, CE, WEEE, RCM, ANATEL, KC, Giteki |
| Warranty: | 2 years parts and labor (90 days on accessories) |
| Dimensions | 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm) |
| Weight | 3.3 oz (94 g) including battery |
| Color | Black/Silver (Front/Back) |
| Case Material | Black ABS plastic |
| Battery type | Lithium Polymer with smart charge built into transceiver; 1800 mAH |
| Battery life | Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Charge time | 5 hrs. approx. |
| System Voltages | OLED 14VDC; RF 5VDC; Logic 3.3 VDC |
| Operating frequencies | 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS |
| Audio Frequency response (-3dB Level) | Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz |
| SNR | 73 dB (A-weighted, default Rx volume with mic input ) |
| THD | 0.1 % (Default Volume, 1kHz) |
| Microphone input | Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range. |
| Line Input | USB-C, Adjustable level |
| Headphone Output | 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms |
| Audio Output | Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level |
| Range | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Modulation | FSK |
| RF Output | 19 dBm Typical |
| Security | 87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for settings |
| Side tone | -6 dB below volume, tone variation (Off, Low and High settings available) |
| Indicators | OLED |
| LEDs | Red LED around Talk button when enabled; Bi-color, changing green and red LED at top |
| Charging Connectors | USB-C; Two contacts for use with CHG 412 |
| Compatible Receiver | DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations |
| Operating Tempurature Range | 14º to 113ºF (-10º to 45ºC) |
| Approvals | FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki |
| Warranty | 2 years parts and labor (90 days on accessories); 6 months on internal battery |
| Style | Around-ear speaker |
| Plug | 3.5mm mono |
| Cord | 39" |
| Driver Size | 23 mm |
| Nominal Impedance | 32? |
| Freq. Response | 20 - 20kHz |
| Weight | 15g |
| Max Power Input | 30 mW |
| Sensitivity | 118 dB @ 1kHz |
