Williams AV Infrared System - IR SY22 D

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Large-area Dante Infrared System with Bodypack Receivers

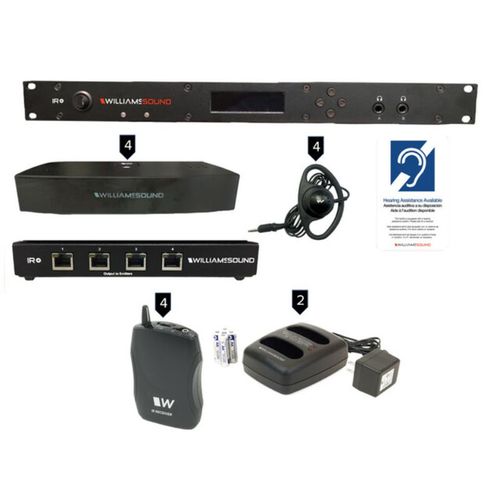

Commercial-grade, large-area Dante infrared system with IR+ transmitter, 4 emitters and array.

Specifications

IR M1

Dimensions:	19� (W) x 1.75� (H) x 8.2� (D) (48.3 cm x 4.5 cm x 20.8 cm)
Weight:	5.2lb. (2.4 kg)
Color:	Black
Rack Mount:	Single Rack Unit
Power Supply:	International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive
Power Switch:	Rocker switch with LED
Signal to Noise Ratio:	67 dB (typical)
Modulation:	FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency:	Selectable, 2.3/2.8 or 3.3/3.8MHz
Frequency Response:	40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion:	Less than 2%, electrical response
Audio Processor Functions:	DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Auto Carrier Shut-Off:	Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED:	Dual IR LED for receiver testing, monitoring, and audio signal testing.
Audio Input:	(2x) Combination 3-pin XLR, 1/4� (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Dante:	Optional
Internal Test Tone:	400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration:	Available through embedded website
Headphone Output:	(2) 1/4? headphone jacks on front panel for monitoring CH A and CH B audio inputs
Emitter Output Jack:	Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Operating requirements:	0-50�C ambient temperature, non-condensing, non-corrosive atmosphere
Approvals:	CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty:	2 years on Modulator, 90 days on accessories

IR E4

Dimensions:	7.5� (W) x 1.4� (H) x 3.6� (D) (19.1 cm x 3.6 cm x 9.1 cm)
Weight:	0.8 lb (362 g)
Color:	Black
Power:	48 VDC supplied by IR M1 via CAT 5e cable.
Coverage Area:	Up to 18,000 square feet in single channel mode
Connectivity:	+48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Operating requirements:	0-50�C ambient temperature, non-condensing, non-corrosive atmosphere
Approvals:	CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty:	2 years on Emitter; 90 days on accessories

CHG 520

Dimensions:	12?L x 6.25?W x 1.5?H (30.48 cm x 15.875 cm x 3.81 cm)
Weight:	13.6 lbs
Color:	Black metal and plastic
Power Supply Input:	120 VAC
Power Supply:	100-240V / 12VDC TFP 043
Unit Capacity:	5 Units
Indicators:	Individual Charging Indicators: Red LEDs
Warranty:	1 year (90 day warranty on cables and power supply)
Approvals:	WEEE, RoHS, CE, FCC, CANADA, RCM, VCCI

IR RX20

Weight:	1.6 oz
Material and Color:	IR Transparent polycarbonate, black
Battery Type:	LiPo
Battery Life:	8 hours
Battery Charger:	CHG 520
Operating Temp:	32-122� F (0-50� C)
Range:	Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter
Operating Frequency:	2.3 MHz or 2.8 MHz or stereo
Frequency Response:	100 Hz to 12 kHz, � 3 dB
Signal to Noise Ratio:	60 dB at 10 m
Controls:	Volume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
Acoustic Output:	120 dB MAX SSPL90 with 2 cc coupler
Compatibility:	Compatible with 2.3 MHz and 2.8 MHz IR transmitters
Headphone Jack:	3.5mm stereo
Ear pads:	EAR 089
Approvals:	CE, RoHS, FCC, Canada, RCM, VCCI, WEEE
Warranty:	5 years (90 days on battery)
