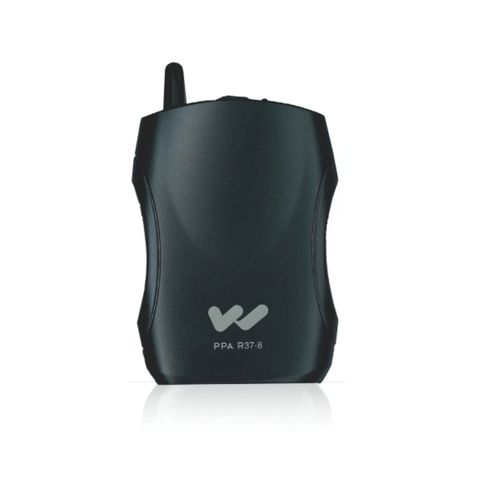

Williams AV FM Receiver with EAR - PPA R37

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

R37 FM Receiver with EAR 013

The FM R37 with an EAR 013 earphone features seek-button channel selection with access to 17 pre-set, wideband frequencies on reserved for hearing assistance by the ADA. The receiver is compatible with all Williams Sound 72-76 MHz wide-band transmitters.

The FM R37’s audio is digitally synthesized for exceptional audio clarity and stability. Versatile 3.5mm stereo/mono jack allows for a variety of earphone/headphone options, and is neckloop/telecoil-equipped hearing aid compatible. The FM R37 offers sleep mode, low-battery indicator and stereo headphone jack.

Key Features

Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
Channel-lock capability
Battery-saving sleep mode
Low-battery indicator
Field tunable

Specifications

Dimensions:	4.1? x 2.85? x 1.38? (104 x 72 x 35mm)
Weight:	4.6oz (130g) with batteries. 2.6oz (73g) without batteries
Color:	Black
Battery Type:	(2) AA Alkaline or 2 x AA NiMH
Battery Life:	Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
Current Consumption:	52mA nominal
Temperature Range:	– 0 to 50C
Channels	17, accessed via seek button in battery compartment
Operating Freq.:	72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
Intermediate Freq.:	75 kHz
FM Deviation:	75 kHz
De-Emphasis:	75 µS
LED Indicator:	Power: Green; Low Battery: Flashes Green
AFC Range:	± 120 kHz
Sensitivity:	2 µV at 12 dB Sinad with squelch defeated
Input Overload:	100 mV
Frequency Response:	200 – 15 kHz
Modulation:	FM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio:	65 dB min @ 100 uV
Receive Antenna:	Integral with earphone/headphone cord
Audio Output:	35 mW max, peak into 16 ohms
Output Connector:	3.5 mm stereo/mono phone jack
Earphone:	Earbud-type with foam cushion, 3.5 mm plug, 32 ?
Auto Shut-off	Enters sleep mode after approx 6 mins of no RF signal
Approvals:	FCC, Industry Canada, RoHS, WEEE
Warranty:	Lifetime PLUS Limited Warranty, 90 Days on most accessories.

Reviews

Write a Review

Downloads

Product Data Sheet
