Williams AV FM Receiver - PPA R38-20

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

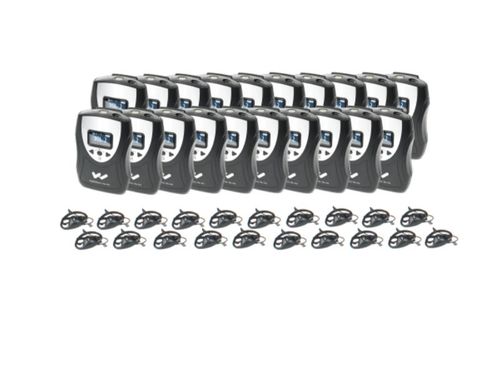

20-pack FM R38 Receiver Bundle

The FM R38 Receiver Bundle comes with 20 FM R38 receivers. Also includes batteries and earphones. The R38 offers a quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wide-band frequencies (72-76 MHz). Compatible with all Williams Sound 72-76 MHz wide-band transmitters. Digitally synthesized for exceptional audio clarity and stability. Digital tuning, digital squelch and battery saving sleep mode. New stereo jack paired with the mono jack adds compatibility with a variety of earphones/headphones. Rechargeable.

Key Features

Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
Channel-lock capability
Embedded Audio Support: 16 channels.
Battery-saving sleep mode
Low-battery indicator
Field tunable

Specifications

EAR 022

Style	Around-ear speaker
Plug	3.5mm mono
Cord	39"
Driver Size	23 mm
Nominal Impedance	32?
Freq. Response	20 - 20kHz
Weight	15g
Max Power Input	30 mW
Sensitivity	118 dB @ 1kHz

PPA R38N

Dimensions:	4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
Weight:	4.6oz (130g) with batteries. 2.6oz (73g) without batteries
Color:	Black/Silver. Black ABS Plastic case with Aluminum faceplate.
Battery Type:	(2) AA Alkaline or (2) AA NiMH Rechargeable
Battery Life:	(2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
Current Consumption:	52mA nominal
Operating Temp. Range:	32� � 122�F (0� to 50�C)
Channels:	17 Wideband, accessed via menu
Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
FM?Deviation:	75 kHz
De-Emphasis:	75 �S
Display Screen:	1" OLED
Power?Indication:	Power button, backlit green. Good battery strength - glows solid. Low battery - flashes.
Sensitivity:	2 �V at 12 dB Sinad with squelch defeated
Input Overload:	100 mV
Frequency Response:	200 Hz � 15 kHz, �3dB
Modulation:	FM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio:	Minimum 65 dB @ 1.0V
Receive Antenna:	Integral with earphone/headphone cord
Audio Output:	35 mW max at 16 ?
Headphone Connector:	3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
Supplied Earphone:	Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 ?
Power Save Mode:	Enters sleep mode after approximately 3 minutes of no RF signal
Approvals:	FCC, Industry Canada, RoHS, WEEE
Warranty:	Lifetime PLUS Limited Warranty, 90 Days on most accessories.
