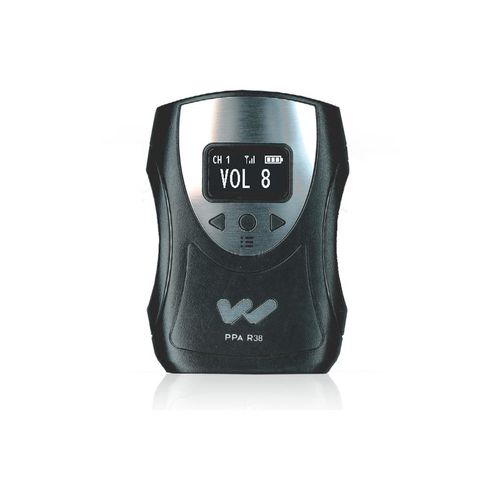

Williams AV FM Receiver - PPA R38N

Williams AV FM Receiver - PPA R38N

Part Number: PPA R38N
Our Price: $188.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

PPA R38 FM Receiver

The PPA R38 is a multi-channel FM receiver with a high-resolution OLED screen. This version of the receiver does not come with earphones or batteries, but is otherwise identical to the FM R38. The R38 offers a quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wide-band frequencies (72-76 MHz). Compatible with all Williams Sound 72-76 MHz wide-band transmitters. Digitally synthesized for exceptional audio clarity and stability. Digital tuning, digital squelch and battery saving sleep mode. New stereo jack paired with the mono jack adds compatibility with a variety of earphones/headphones. Rechargeable.

Key Features
  • OLED high-resolution screen – easy to read and provides a quick view of receiver status.
  • All user settings are accessible via the on-screen menu – including all 17 wideband channels.
  • Stylish new design
  • Now features stereo headphone jack
  • Rechargeable or non-rechargeable batteries
  • Digital Volume Controls
  • 4-step battery level indication
  • Display shows channel or frequency
  • Step/seek function allows user to increment channel manually, or seek to the next active channel
  • Sleep Mode/Auto-Off saves battery power
  • Soft Audio Turn-On

Specifications

Dimensions:4.1? x 2.85? x 1.38? (104 x 72 x 35mm)
Weight:4.6oz (130g) with batteries. 2.6oz (73g) without batteries
Color:Black/Silver. Black ABS Plastic case with Aluminum faceplate.
Battery Type:(2) AA Alkaline or (2) AA NiMH Rechargeable
Battery Life:(2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
(2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
Current Consumption:52mA nominal
Operating Temp. Range:32° – 122°F (0° to 50°C)
Channels:17 Wideband, accessed via menu
Operating Frequencies:72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
FM?Deviation:75 kHz
De-Emphasis:75 µS
Display Screen:1? OLED
Power?Indication:Power button, backlit green.
Good battery strength – glows solid. Low battery – flashes.
Sensitivity:2 µV at 12 dB Sinad with squelch defeated
Input Overload:100 mV
Frequency Response:200 Hz – 15 kHz, ±3dB
Modulation:FM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio:Minimum 65 dB @ 1.0V
Receive Antenna:Integral with earphone/headphone cord
Audio Output:35 mW max at 16 ?
Headphone Connector:3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
Supplied Earphone:Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 ?
Power Save Mode:Enters sleep mode after approximately 3 minutes of no RF signal
Approvals:FCC, Industry Canada, RoHS, WEEE
Warranty:Lifetime PLUS Limited Warranty, 90 Days on most accessories.
