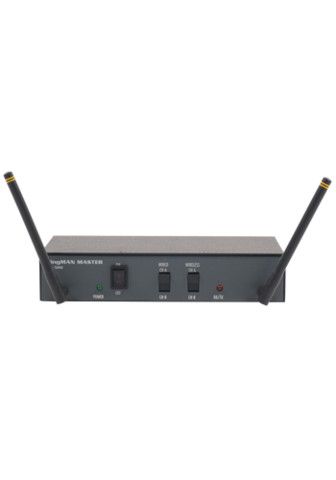

Anchor WingMAN Interface Station - WM-500

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

The WM-500 is a base-station interface that provides full-duplex communication between Anchor ProLink wireless belt-packs and unbalanced party-line intercom systems such as PortaCom and ClearCom

Ease of Use - Setup in less then 5 minutes
Interfaces w/ Party Line Wired Systems
Dual Antennas provide excellent duplex range
Range performance LED indicator
Rackmountable - Kit available
External antenna mounting kit available
2 Year warranty
Anchor Audio Product - Made in the USA

Specifications

Range (line of sight) :	1500� / 450 m
FCC License :	User Registration
Selectable Wireless Groups :	4
Selectable Wired Groups :	2
Frequency :	944 - 952 MHz
Frequency Settings :	4 per Group
Output Power :	8dBm
DC Requirements :	9V-0.5A
Interface Connector :	3-pin female XLR
Antenna :	1/2 wave length dipole
Antenna Length :	7.2"/182mm
Dimensions :	8.5 x 4.5 1.2 in / 21.6 x 11.4 x 4.32 cm
Maximum load protection :	2.4lbs / 1.1kg
Warranty (Length/Type) :	2 Years
Shipping Width (with packaging) :	101.60 mm
Shipping Width (with packaging) :	4 in
