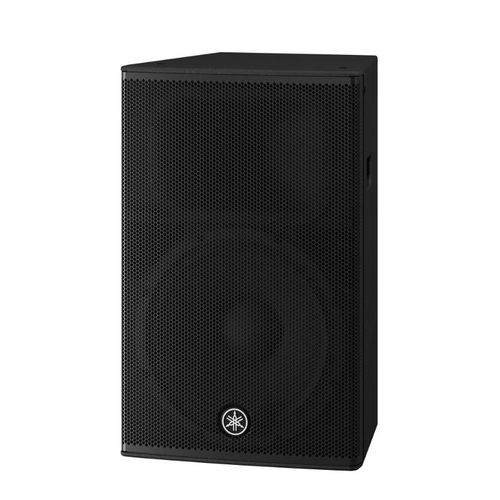

Yamaha 2-Way; 15" LF; 1.4" titanium HF; plywood enclosure; integral rigging, - yamaha-chr15

Yamaha 2-Way; 15" LF; 1.4" titanium HF; plywood enclosure; integral rigging, - yamaha-chr15

Part Number: CHR15
Our Price: $669.99
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Yamaha CHR15 Series Loudspeakers

The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.

Key Features
  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Specifications

Speaker type2-way Speaker, Bass-reflex
Frequency range (-10dB)49 Hz - 20 kHz
Coverage areaH90? x V60?
Crossover8 ?
Nominal impedance2 x speakON
Sensitivity (1W; 1m on axis)95 dB SPL
Peak (Calculated)125 dB SPL
LFDiameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
HFDiaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
I/O connectorsSpeakON NL4MP x 2 (Parallel)
Pole socket?35 mm x2 (Bottom, 0° or -7°)
