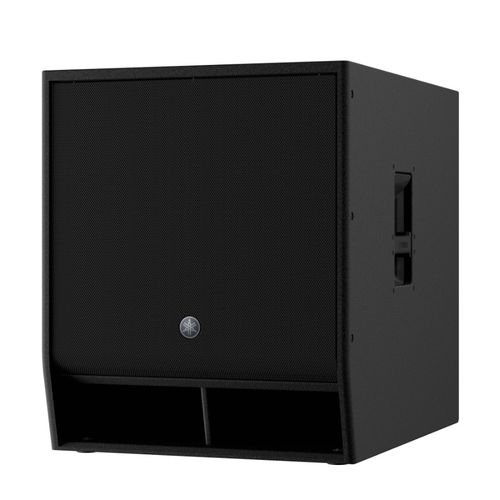

Yamaha 18" Powered Subwoofer - DXS18XLF

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Powered Subwoofer

Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

Key Features

Powered 18” subwoofer with 4” Voice Coil
Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
High power 1600W Class-D amplifier module
96kHz DSP for true high-definition sound with super low latency
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
Equipped with D-XSUB processing and cardioid mode capability
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

Specifications

General Specifications		DXS18XLF
Speaker Type		Powered Subwoofer, bass-reflex
Frequency range (-10dB)		30Hz - 150Hz
Coverage Area		-
Components	LF	18" Cone, 4" Voice Coil, Ferrite magnet
	MF	-
	HF	-
Crossover		-
Sampling Frequency Rate	Internal	96kHz and FIR Filter
A/D D/A Converters		96kHz AD/DA
Maximum output level (1m; on axis)		136dB SPL *1
SRC		No
Power rating	Dynamic	1600W *2
Power rating	Continuous	1230W
I/O Connectors	Analog I/O	Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
	Digital I/O	-
	Others	USB2.0 Host 5V 500mA for USB memory DATA storage/load
	AC	IEC AC inlet x1 (V-Lock)
Amplifier class		Class-D
Cooling		Fan cooling, Variable speeds
Power consumption		40W (Idle), 180W (1/8)
Handle		Aluminium die-cast, Side x2
Rigging		-
Dimensions	W	550 mm (21.7")
	H	657 mm (25.9") (with rubber feet)
	D	720 mm (28.3")
Net weight		48.9kg (107.8lbs)
Options		Cover: SPCVR-DXS18X, Caster: SPW-1
Others		Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle		-
Pole Socket		Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
