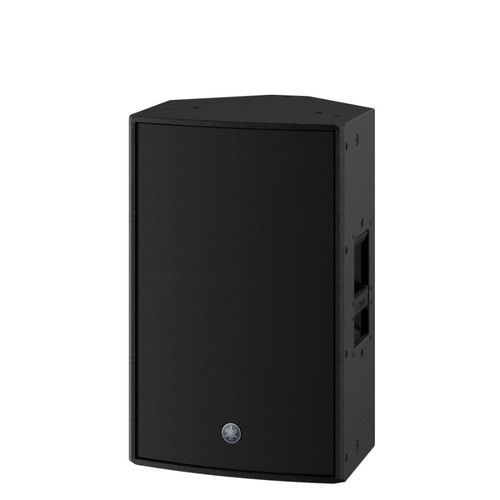

Yamaha 12" DANTE Powered Loudspeaker - DZR12-D

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Powered Loudspeaker

The DZR12-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Key Features

2-way powered loudspeaker with a 2” HF and a 12" LF
Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today's professional audio demands
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Optional speaker cover (SPCVR-DZR12)
Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

Specifications

General Specifications		DZR12-D
Speaker Type		2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB)		39Hz - 20kHz
Coverage Area		H90ﾟ x V60ﾟ (Rotatable)
Components	LF	12" Cone, 3" Voice Coil, Neodymium magnet
	MF	-
	HF	2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover		1.8kHz (FIR-X)
Sampling Frequency Rate	Internal	96kHz and FIR Filter
A/D D/A Converters		96kHz AD/DA
Maximum output level (1m; on axis)		139dB SPL *1
SRC		Yes
Power rating	Dynamic	2000W (LF:1000W, MF/HF: 1000W) *2
Power rating	Continuous	1300W (LF: 920W, MF/HF: 380W)
I/O Connectors	Analog I/O	Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
	Digital I/O	Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
	Others	USB2.0 Host 5V 500mA for USB memory DATA storage/load
	AC	IEC AC inlet x1 (V-Lock)
Amplifier class		Class-D
Cooling		Fan cooling, Variable speeds
Power consumption		45W (Idle), 150W (1/8)
Handle		Aluminium die-cast, Side x2
Rigging		M10 x12
Dimensions	W	410 mm (16.1")
	H	646 mm (25.4") (with rubber feet)
	D	394 mm (15.5")
Net weight		21.4kg (47.2lbs)
Options		U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others		Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle		50° Symmetrical
Pole Socket		Φ35 mm x2 (0° or -7°)
