Yamaha Analog input expansion unit; features 8 remote controllable mic/line inputs; connects via YDIF format on Cat5e or better cable; Euroblock and RJ45 connectors; 1RU, - yamaha-exi8

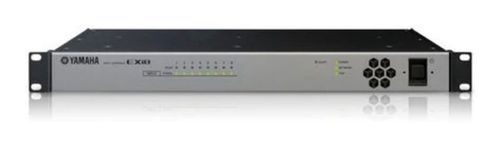

Yamaha EXi8 YDIF Equipped Input Expander for MTX Series

The Yamaha EXi8 input expanders convert analog microphone/line audio to digital and transmits the signal using Yamaha's YDIF format. The EXi8's preamps can be controlled remotely from an MTX processor via Ethernet cable.

• Maximum number of simultaneously usable devices: A total of seven EXi8 and EXo8 devices.
• Sampling frequency: 48kHz/44.1kHz
• Signal delay: Less than 2.5ms
• Frequency response: 20Hz to 20kHz, -1.5dB min, 0dB typ., +0.5dB max.
• Dynamic range: 107dB (Gain:-6dB)
• Crosstalk / Channel separation: -100dB (@1kHz)
