Yamaha

Analog mixer with digital capabilities.

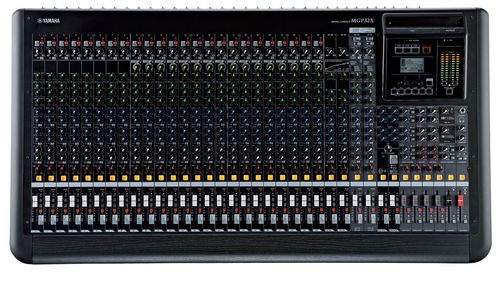

The MGP32X is a 32-channel mixing console with iPhone®/iPod® connectivity, compression and digital effects. This mixer is appropriate to a wide range of professional applications from portable P.A. to fixed installation. The MGP32X features: 24 Mic Inputs with 48V Phantom Power and HPF per Channel, 32 Line Inputs (24 mono and 4 stereo), 6 AUX Sends + 2 FX Sends, 4 GROUP Buses + ST Bus, 2 Matrix out, and 1 Mono out. Great sounding microphone preamps, detailed EQ, quality digital effects and broad digital connectivity.

Features

• 24 Mic Inputs with 48V Phantom Power and HPF per Channel
• 32 Line Inputs (24 mono and 4 stereo)
• 6 AUX Sends + 2 FX Sends
• 4 GROUP Buses + ST Bus
• 2 Matrix out

Specifications:

• Mixing capability
• Mixing channels: 32 Line Inputs (24 mono and 4 stereo)
• GROUP: 4 GROUP Buses + ST Bus
• AUX: 6 AUX Sends + 2 FX Sends
• MATRIX: 1 Matrix out
• On-board processors: FX1:REV-X(8 PROGRAM, PARAMETER control)/FX2:SPX(16 PROGRAM, PARAMETER control)

I/O:

• Mic inputs: MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)
• Phantom power: 48V phantom power per channel
• Line inputs: LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo
• Digital I/O: USB Device, iPod / iPhone

General Specifications:

• Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
• Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominaloutput level @1kHz
• Hum & noise level Equivalent input noise: -128 dBuEquivalent Input Noise
• Residual output noise: -94 dBu Residual Output Noise
• Crosstalk: -74dB @ 1kHz
• Power requirements: 100-240V 50Hz/60Hz
• Power consumption: 86W max
• Dimensions: 40.4" W x 6.7" H x 22.2" D
• Net weight: 41.9 lbs
