Yamaha 4-Channel acoustic echo cancellation card; includes feedback suppressor and noise reduction processing; compatible with MRX7-D; MTX5-D version 1.2 and higher; DME24N and DME64N version 4.0 and up only, - yamaha-my4aec

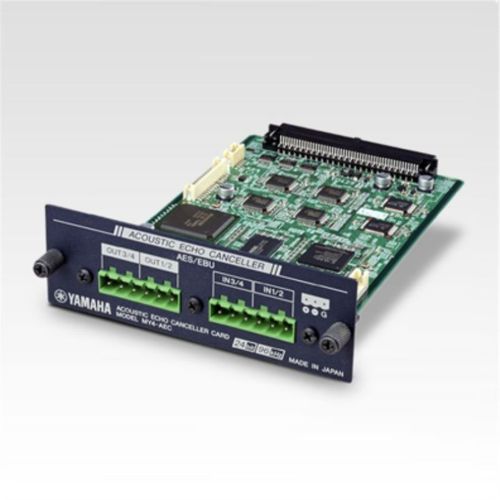

Yamaha MY4-AEC Acoustic Echo Canceller Card

The MY4-AEC card provides 4 channels of acoustic echo cancellation for remote conferencing using Yamaha’s DME24N and DME64N digital mixing engines. As well as the echo cancellation function, the MY4-AEC card also offers a noise reduction function which removes steady-state background noise such as air conditioning and projector fans etc. The card also has a feedback suppressor with 42 notch filters per channel to aid the suppression of feedback in PA systems. Any of the 8 internal mic/line inputs of the DME24N can be routed to the MY4-AEC. In the case of the DME64N, any of the MY card slots or CASCADE bus can route to the MY4-AEC. The AES/EBU inputs and outputs (with sample rate conversion) can route to either the MY4-AEC or be used independently in a DME design.

• 24bit resolution, 4-in/4-out adaptive echo canceller
• 4x Euroblock connectors
• HD sound quality
• 4ch feedback suppressor and noise reduction
• Additional 4ch AES/EBU I/O with sampling rate converter

• Product Data Sheet
