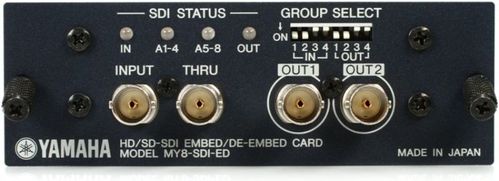

Yamaha 8-Channel HD/SD-SDI embed/de-embed input card; one BNC connector with SDI input; two BNC connectors with SDI output; and one BNC connector with SDI reclocked thru output, - yamaha-my8sdi-ed

Yamaha MY8-SDI-ED 8-channel HD-SDI/SD-SDI Embedder/De-embedder Interface Card

Yamaha's MY8-SDI-ED SDI, one of Yamaha's MY (Mini-YGDAI) series expansion cards, is an embed/de-embed interface card that provides input and output of HD-SDI embedded audio signals for Yamaha digital consoles. The card has one HD/SD-SDI input, two HD/SD-SDI outputs (same signal), and one thru-output (reclocked). Contact your Sweetwater Sales Engineer for more information about the Yamaha MY8-SDI-ED card.

• One HD/SD-SDI input
• Two HD/SD-SDI outputs (same signal)
• One thru-output (reclocked)
• Four channels per group (total 8 channels), multiplexed in an HD-SDI signal
• Able to embed 2 audio groups into an HD/SD-SDI signal for output
• LED audio status display

• Product Data Sheet
