Yamaha 34 Motorized faders (32 x 2 master/assignable); 72 input mixing channels (64 mono + 8 stereo); 16 Mix (mono); 8 Matrix (mono); 1 stereo Master; 1 Mono Master; 16 DCA groups; 32 analog XLR inputs; 16 analog XLR outputs; 2 x 2 record/playback channels via USB storage device; built-in Dante I/O (64 x 64); 2 MY Card slots; ships with Steinberg Nuendo Live 2 software and one Dante Virtual Soundcard license, - yamaha-ql5

Yamaha 34 Motorized faders (32 x 2 master/assignable); 72 input mixing channels (64 mono + 8 stereo); 16 Mix (mono); 8 Matrix (mono); 1 stereo Master; 1 Mono Master; 16 DCA groups; 32 analog XLR inputs; 16 analog XLR outputs; 2 x 2 record/playback channels via USB storage device; built-in Dante I/O (64 x 64); 2 MY Card slots; ships with Steinberg Nuendo Live 2 software and one Dante Virtual Soundcard license, - yamaha-ql5

Part Number: QL5
Our Price: $18,359.00
Availability: Contact us for availability
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

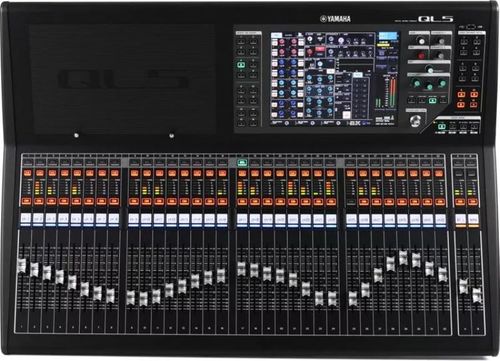

Yamaha QL5 64-channel Digital Mixing Console

The Yamaha QL5 64-channel digital mixer is packed with many of the core features of their acclaimed CL Series, making it your ideal compact all-in-one solution for mixing, processing, and routing audio. Loaded with premium internal processors, including stellar-sounding EQ and dynamics tools developed in cooperation with Rupert Neve Designs, the QL5 will bring out the best sonic character in any source. With built-in automixing functionality, Dante network support, and remote control via your tablet or computer, the Yamaha QL5 is the perfect sound reinforcement solution for small- to medium-scale live sound, corporate speech events, broadcast, and more!

Key Features
  • Premium internal processors simulate classic studio gear and more
  • Rupert Neve-designed EQ and dynamics for studio-quality sound
  • Automixing functionality via the Dan Dugan automatic mixer
  • Dante network support lets you create complex system designs
  • Remote control via tablet or computer lets you go deep into your mix
  • Tons of scene memory, customization options, and more

Specifications

Channels64 mono, 8 stereo mixing channels
Inputs - Mic Preamps32 x XLR
Phantom Power32 channels
Outputs - Main16 x XLR (Omni)
Inputs - Digital2 x EtherCon Cat5 (Dante Primary, Secondary)
Outputs - Digital1 x XLR (AES/EBU), 2 x EtherCon Cat5 (Dante Primary, Secondary)
Busses/Groups16 x Bus
InsertsYes
TalkbackYes
MIDI I/OIn, Out
Data I/OEthernet
Headphones1 x 1/4"
USB1 x Type A
I/O Expansion Slots2 x Slots (MY expansion)
Word ClockIn, Out
Faders34 x 100mm Throw
EQ Bands4-band Parametric
