Yamaha 10x Neutrik EtherCON + 2x single mode fiber opticalCON ports, - yamaha-swp2-10smf
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description

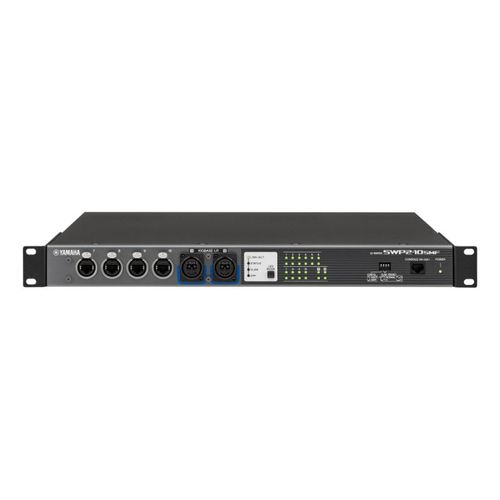

Yamaha SWP2-10SMF Gigabit Network Switch, 10 Ethercon + 2 Single Mode Fiber
The SWP2-10SMF is a single-mode fiber design that supports transmission over distances of up to 10km (6mi), and with 10-gigabit optical support, you'll have all the bandwidth you need to operate your network at 96kHz over that distance. And as your network grows, the SWP2 series allows a Dante optimized setup to be recalled by simply flipping one DIP switch. No expertise or training is required.
Key Features- Simple DIP switch Dante optimization
- Multi-mode fiber design with transmission up to 10km (6mi) @ 96kHz
- 3 preset VLAN domains with user mode for customization
- ethercon connectors for live sound reliability
- Locking AC cable to prevent accidental disconnection
- Dedicated LAN monitor app for Windows provides network visibility
Specifications
Number of LAN ports | 10 |
Number of SFP+ ports (10GBASE-LR, opticalCON DUO connector) | 2 |
Console port | 1 (RJ-45) |
Indicators | Front: POWER, LED MODE×4, PORT×10×2*, SFP+ ×2×2 |
Auto MDI/MDI-X | Available |
DIP switches | CONFIG, VLAN PRESET |
Body material | Metal case, no fan |
Maximum power consumption | 21W, 0.35A |
Weight | 9.9 lbs / 4.5 kg (excluding accessories) |
