Yamaha 10" Dual Voice Coil; low impedance model; 45Hz-200Hz; 200w x 2 @ 8? or 400w x 1 @ 4?; black finish, - yamaha-vxs10s

Yamaha 10" Dual Voice Coil; low impedance model; 45Hz-200Hz; 200w x 2 @ 8? or 400w x 1 @ 4?; black finish, - yamaha-vxs10s

Part Number: VXS10S
Our Price: $409.99
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

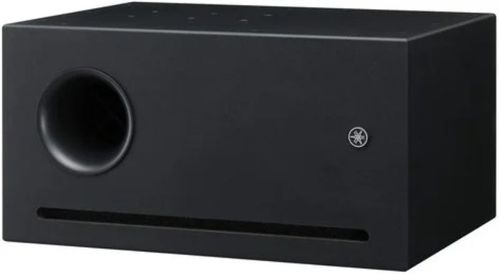

Yamaha VXS10S 10" Surface-Mount Subwoofer, 8 Ohm, Black

Yamaha designed the new VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction - effectively enhancing sound quality and speaker performance without disturbing the interior decor of the installation. This concept is evident in the hexagonal design featured on the grille of both series' speakers that actually improves sound clarity by raising the aperture ratio. Similarly, the smooth curves of the surface-mount cabinet's simple yet sophisticated design allow the speakers to be mounted closely to the wall - while still fully capable of panning and tilting to target service areas.

Key Features
  • Type: Subwoofer, Bass reflex
  • Overload protection: Full-range power limiting to protect network and transducers
  • Acoustic filter: Low-pass filter 6 dB/Oct, 200 Hz
  • Subwoofer filter Network: Low-pass filter 6 dB/Oct,200 Hz
  • Component: 10" (25 cm) Cone driver, Dual voice coil

Specifications

Speaker TypeSubwoofer, Bass reflex
Component10" (25 cm) Cone driver, Dual voice coil
Nominal impedance8 Ohms + 8 Ohms
Sensitivity (1W, 1m)96 dB SPL
Power Rating (Noise/PGM/Peak)100 W / 200 W / 400 W
Maximum SPL (Calculated, 1m)q25 dB SPL
Frequency range (-10 dB)45 Hz – 250 Hz
Subwoofer filter NetworkLow-pass filter 6 dB/Oct,200 Hz
