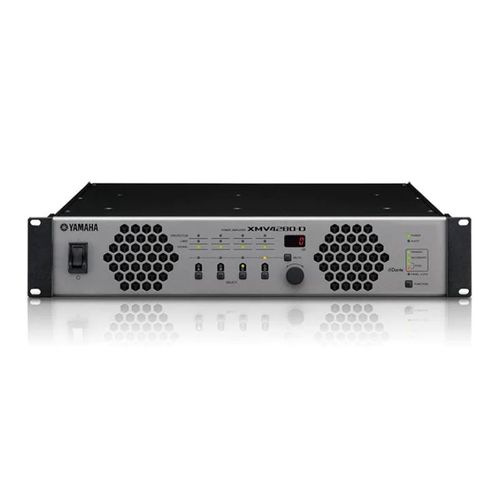

Yamaha XMV Series Power Amplifier with Dante - XMV4280-D

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

A comprehensive line-up to power your sound solution

XMV Series multi-channel power amplifiers combine Class-D efficiency with features designed specifically to benefit commercial installation sound systems. The Series is comprised of 8 different models with varying output power capabilities and flexible in/out connectivity to accommodate a wide range of installation environments.

Dante models for larger venues where long distant cabling is required.

Key Features

4x 280W at 8?/4?
4x 250W at 100V/70V lines
2x 560W at Double Power Mode (8?/4?)

Specifications

		XMV8280-D	XMV8280	XMV8140-D	XMV8140
General specifications
Output power	1kHz (THD+N=1%: 4?)	280W x 8	280W x 8	140W x 8	140W x 8
	1kHz (THD+N=1%: 8?)	280W x 8	280W x 8	140W x 8	140W x 8
	1kHz (THD+N=1%: 4? / Double Power Mode)	560W x 4	560W x 4	280W x 4	280W x 4
	1kHz (THD+N=1%: 8? / Double Power Mode)	560W x 4	560W x 4	280W x 4	280W x 4
	High impedance: 100V line	250W x 8 / 40 ?	250W x 8 / 40 ?	125W x 8 / 80 ?	125W x 8 / 80 ?
	High impedance: 70V line	250W x 8 / 40 ?	250W x 8 / 40 ?	125W x 8 / 40 ?	125W x 8 / 40 ?
Voltage Gain	RL=8?	31.7dB	31.7dB	28.7dB	28.7dB
	RL=8? / Double Power Mode	34.7dB	34.7dB	31.7dB	31.7dB
	100V	38.2dB	38.2dB	38.2dB	38.2dB
	70V	35.2dB	35.2dB	35.2dB	35.2dB
Power consumption		1/8 power (4 ? pink noise):450W, Idle (4 ?):73W, Standby:23W	1/8 power (4 ? pink noise):450W, Idle (4 ?):73W, Standby:23W	1/8 power (4 ? pink noise):250W, Idle (4 ?):73W, Standby:23W	1/8 power (4 ? pink noise):250W, Idle (4 ?):73W, Standby:23W
Total harmonic distortion		? 0.2% (1kHz, half power)	? 0.2% (1kHz, half power)	? 0.2% (1kHz, half power)	? 0.2% (1kHz, half power)
Frequency response		0dB, �1.0dB (RL=8?, 100V/70V, Po=1W, 20Hz - 20kHz)	0dB, �1.0dB (RL=8?, 100V/70V, Po=1W, 20Hz - 20kHz)	0dB, �1.0dB (RL=8?, 100V/70V, Po=1W, 20Hz - 20kHz)	0dB, �1.0dB (RL=8?, 100V/70V, Po=1W, 20Hz - 20kHz)
S/N ratio		? 100dB(A-weighted)	? 100dB(A-weighted)	? 100dB(A-weighted)	? 100dB(A-weighted)
Crosstalk		? -60dB	? -60dB	? -60dB	? -60dB
Input sensitivity		+4dBu	+4dBu	+4dBu	+4dBu
Input impedance		20k? (balanced), 10k ? (unbalanced)	20k? (balanced), 10k ? (unbalanced)	20k? (balanced), 10k ? (unbalanced)	20k? (balanced), 10k ? (unbalanced)
I/O Connectors	Analog I/O	Input: Euroblock x 2 (6P, balanced)	Input: Euroblock x 2 (6P, balanced)	Input: Euroblock x 2 (6P, balanced)	Input: Euroblock x 2 (6P, balanced)
	Digital I/O	RJ45 x 2 (Dante PRIMARY / SECONDARY)	RJ45 x 2 (YDIF IN / OUT)	RJ45 x 2 (Dante PRIMARY / SECONDARY)	RJ45 x 2 (YDIF IN / OUT)
	Speaker Output	Barrier strip x 8 pairs	Barrier strip x 8 pairs	Barrier strip x 8 pairs	Barrier strip x 8 pairs
	Control ports	Remote, Fault Output : Euroblock (3P) x 1	Remote, Fault Output : Euroblock (3P) x 1	Remote, Fault Output : Euroblock (3P) x 1	Remote, Fault Output : Euroblock (3P) x 1
	Network	Shared with Dante ports	RJ45 x 1	Shared with Dante ports	RJ45 x 1
	Others	AC Inlet x 1	AC Inlet x 1	AC Inlet x 1	AC Inlet x 1
Input Level		+24dBu (Maximum)	+24dBu (Maximum)	+24dBu (Maximum)	+24dBu (Maximum)
Protection circuit	Load protection	POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting	POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting	POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting	POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
	Amplifier protection	Thermal: Output mute (heatsink temp ?90�C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)	Thermal: Output mute (heatsink temp ?90�C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)	Thermal: Output mute (heatsink temp ?90�C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)	Thermal: Output mute (heatsink temp ?90�C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)
	Power supply protection	Thermal: Amplifier shuts down automatically (heatsink temp ?100�C) , Integrated power: Gain reduction (Restored automatically)	Thermal: Amplifier shuts down automatically (heatsink temp ?100�C) , Integrated power: Gain reduction (Restored automatically)	Thermal: Amplifier shuts down automatically (heatsink temp ?100�C) , Integrated power: Gain reduction (Restored automatically)	Thermal: Amplifier shuts down automatically (heatsink temp ?100�C) , Integrated power: Gain reduction (Restored automatically)
Cooling		3-Speed fan x 2, front-to-back airflow	3-Speed fan x 2, front-to-back airflow	3-Speed fan x 2, front-to-back airflow	3-Speed fan x 2, front-to-back airflow
Power requirements		100V, 120V, 230V-240V; 50Hz/60Hz	100V, 120V, 230V-240V; 50Hz/60Hz	100V, 120V, 230V-240V; 50Hz/60Hz	100V, 120V, 230V-240V; 50Hz/60Hz
Dimensions	W	480mm (18.9")	480mm (18.9")	480mm (18.9")	480mm (18.9")
	H	88mm (3.5")	88mm (3.5")	88mm (3.5")	88mm (3.5")
	D	422mm (16.6")	422mm (16.6")	422mm (16.6")	422mm (16.6")
Net weight		10.1kg (22.3lbs)	10.1kg (22.3lbs)	10.1kg (22.3lbs)	10.1kg (22.3lbs)
